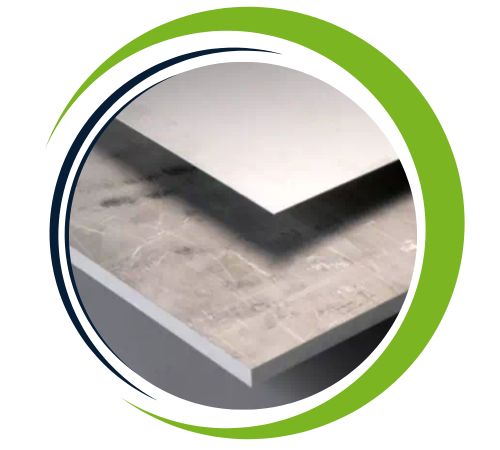

Smith Fittings, a top-notch manufacturer and supplier located in Canberra, Australia, specializes in high-quality **Hastelloy X Sheet and Plates**. These materials are celebrated for their outstanding high-temperature strength, corrosion resistance, and durability. Perfectly crafted for demanding industrial and aerospace applications, these sheets and plates hold up remarkably well in tough oxidizing and reducing environments, ensuring they maintain their structural integrity and performance. At Smith Fittings, precision manufacturing, a superb surface finish, and strict adherence to international quality standards are guaranteed. Known for their long-lasting reliability and mechanical stability, Hastelloy X Sheet and Plates are the go-to choice for critical engineering, chemical processing, and high-temperature applications where performance and durability are non-negotiable.
**Hastelloy X Sheet and Plates** are made from nickel-chromium-iron-molybdenum alloys, featuring **Nickel (≈47%)**, **Chromium (≈22%)**, **Iron (≈18%)**, **Molybdenum (≈9%)**, along with trace amounts of **Cobalt, Manganese, and Carbon**. This material showcases impressive high-temperature strength and oxidation resistance, boasting a **tensile strength of 620–760 MPa**, a **yield strength of 275–345 MPa**, and good elongation, which ensures excellent ductility, toughness, and stability even under extreme thermal and mechanical conditions.
Specifications :ASTM B435 / ASME SB435
Width : 1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length : 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm.
Thickness : Ranging from 0.3mm to 20mm
Hardness : As per ASME A & NACE MR 175

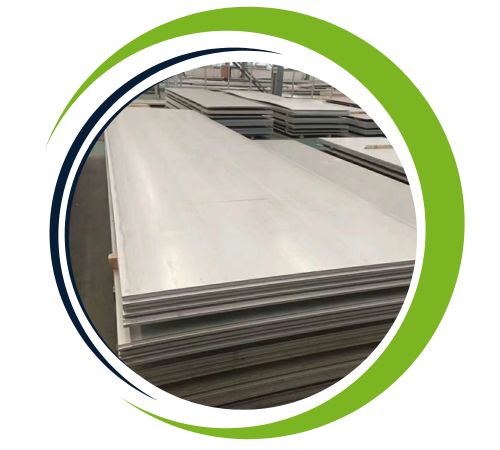

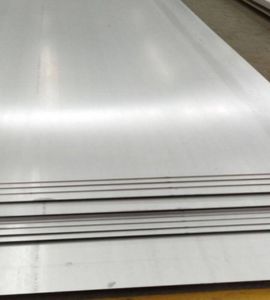

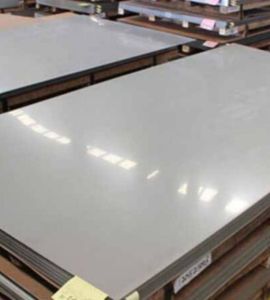

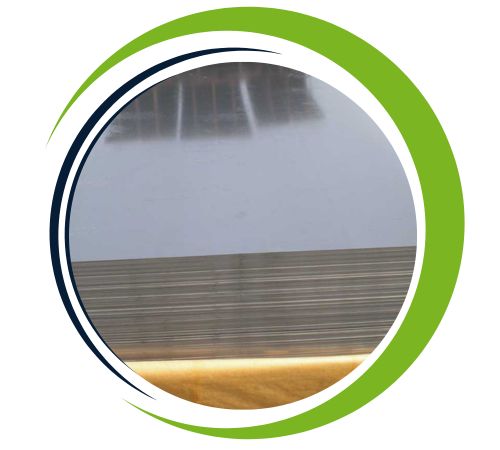

Finish : Hot rolled plate (HR), Cold rolled sheet (CR)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | Al | Co | Ni | Cr | Fe | Mo | Ti |
| Hastelloy X | 0.05-0.15 | 1.0 max | 1.0 max | 0.50 max | 0.5-2.5 | Remainder | 20.5 – 23 | 17 – 20 | 8 – 10 | 0.15 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.22 g/cm3 | 1355°C (2470°F) | 95 KSI min (655 MPa min) | 35 KSI min (240 MPa min) | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy X | 2.4665 | N06002 |
| Dimension (mm) | KG P/M2 |
| 0.5 X 1000 X 2000 | 4.5 |
| 0.7 X 1219 X 3048 | 6.3 |
| 0.9 X 1219 X 3048 | 8.1 |
| 1.2 X 1219 X 3048 | 10.8 |
| 1.6 X 1200 X 3048 | 14.4 |
| 2.0 X 1219 X 3048 | 18.0 |
| 3 X 1200 X 3000 | 27.0 |
| 3.18 X VARIOUS ANN | 28.6 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy X sheets and plates offer significant advantages, particularly in high-temperature applications. Known for their excellent resistance to oxidation and corrosion, they perform exceptionally well in extreme environments, such as gas turbines, aerospace components, and high-temperature chemical processing. With outstanding strength and thermal-fatigue resistance they maintain their structural integrity under fluctuating temperatures. Additionally, Hastelloy X provides superior weldability and formability, making it easy to fabricate into complex shapes. Its durability and long service life in harsh conditions reduce maintenance costs making it a preferred material for critical industrial applications that demand reliability and performance.
| Thickness | Alloy | Plate Weight per Unit Area | Density |
| 3/16 inches | Hastelloy X | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | Hastelloy X | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | Hastelloy X | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | Hastelloy X | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | Hastelloy X | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | Hastelloy X | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | Hastelloy X | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | Hastelloy X | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | Hastelloy X | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | Hastelloy X | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | Hastelloy X | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | Hastelloy X | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | Hastelloy X | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | Hastelloy X | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | Hastelloy X | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | Hastelloy X | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
**Hastelloy X Sheet and Plates** find their place in various industries that demand high-temperature performance and corrosion resistance. Common applications include **gas turbine components, furnace parts, heat exchangers, chemical processing equipment, and aerospace structures**. They are also essential in the **power generation, petrochemical, and aerospace sectors**, where components face oxidizing and reducing atmospheres at high temperatures. The remarkable formability, weldability, and thermal stability of Hastelloy X Sheet and Plates from Smith Fittings make them perfect for fabricating critical high-temperature components and structural assemblies in challenging industrial settings.
