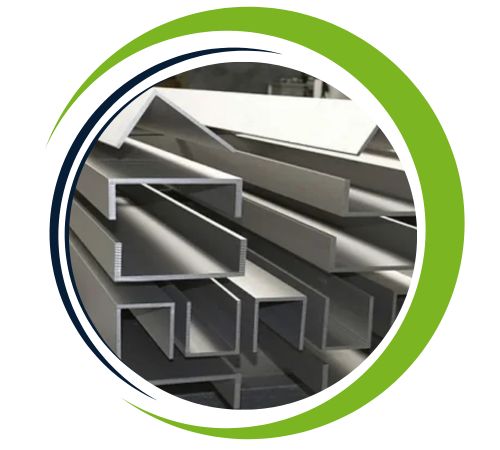

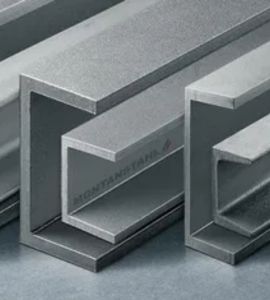

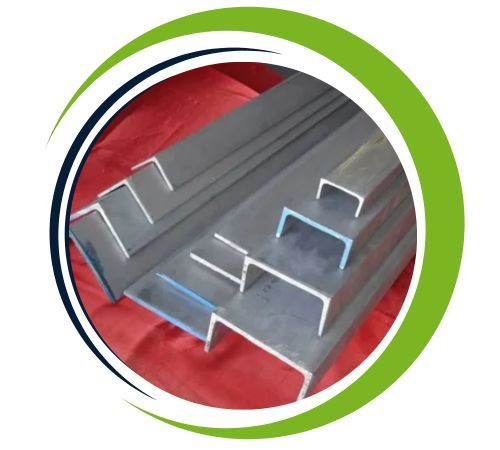

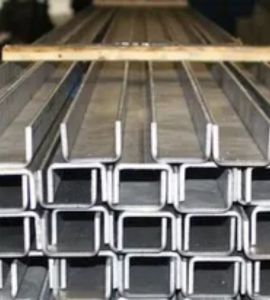

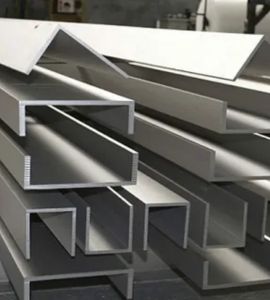

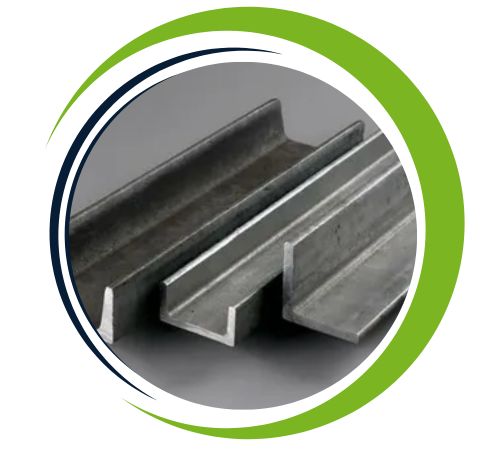

Smith Fittings stands out as a top-notch manufacturer and supplier located in Canberra, Australia, with a focus on high-quality **Inconel 625 Channels**. These channels are celebrated for their remarkable corrosion resistance, impressive strength, and thermal stability, making them perfect for tough aerospace, marine, chemical, and industrial applications. At Smith Fittings, precision manufacturing and strict quality control are paramount, ensuring that every component meets international standards and performs reliably even in the harshest conditions. With excellent weldability, fatigue resistance, and long-lasting durability, Inconel 625 Channels from Smith Fittings deliver outstanding performance in structural, high-temperature, and corrosive environments, minimizing maintenance needs while maximizing reliability.
**Inconel 625 Channels** are primarily made up of nickel, chromium, molybdenum, and niobium, with small amounts of iron, cobalt, and titanium. This nickel-based superalloy boasts a **tensile strength of up to 827 MPa**, exceptional yield strength, and remarkable resistance to oxidation and corrosion, even in seawater and chemical settings. It maintains its mechanical integrity at temperatures soaring up to 980°C and showcases excellent creep, fatigue, and thermal stability. The unique composition of this alloy ensures high toughness, weldability, and formability, making it a go-to choice for critical applications in challenging industrial and marine environments.
Specifications : ASTM B446 / ASME SB446
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Josh Sheets and Plates based in Canberra, Australia, is a leading supplier and stockist of high-quality metal products, including sheets, plates, coils, foils, angles, channels, circles, and slitting coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 625 channels offer several advantages, making them ideal for demanding applications. Their exceptional resistance to oxidation, corrosion, and high temperatures ensures long-lasting durability in extreme environments. The alloy’s high tensile strength, fatigue resistance, and excellent weldability make it suitable for aerospace, chemical, and marine industries. Inconel 625 also exhibits superior resistance to stress corrosion cracking and fatigue at elevated temperatures, allowing it to perform reliably in harsh conditions. Its versatility, strength, and resistance to various corrosive media ensure longevity and reduced maintenance costs in critical applications.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel 625 Channels (kilogram/meter) | Inconel 625 Channels Sizes (all Dimensions in milimeter) | Approx Weight Inconel 625 Channels (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Inconel 625 Channel to meet specific project needs. Our team at Josh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
**Inconel 625 Channels** find their place in a variety of applications, including **aerospace structures, marine engineering, chemical processing equipment, nuclear reactors, gas turbines, and high-performance industrial machinery**. Their outstanding resistance to corrosion and heat makes them ideal for piping, pressure vessels, heat exchangers, and structural components that face extreme conditions. These channels are also utilized in **offshore platforms, exhaust systems, and high-temperature piping**, where mechanical strength, durability, and reliability are essential. Inconel 625 Channels seamlessly blend long-term stability, corrosion resistance, and performance, making them a top choice for demanding environments.
