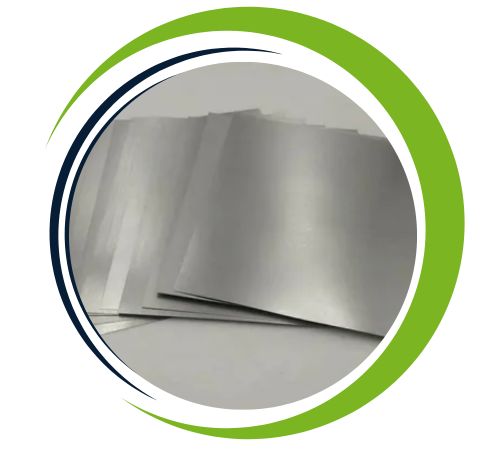

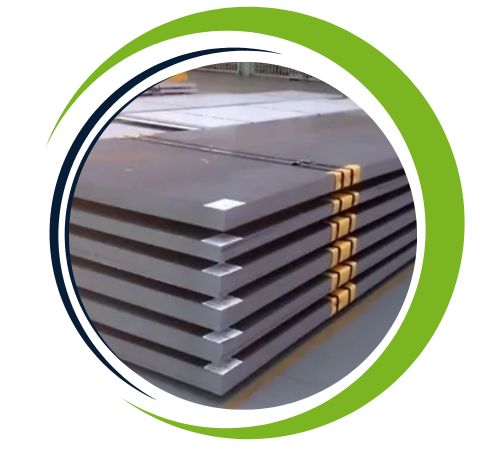

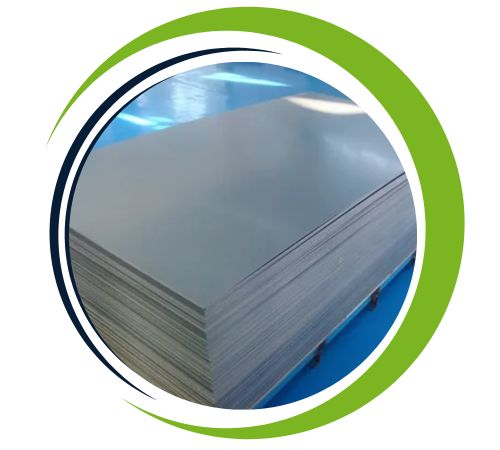

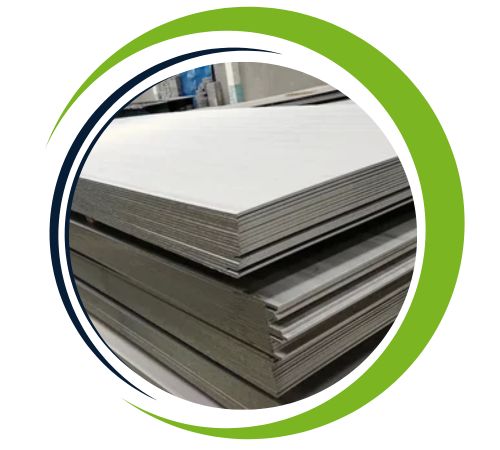

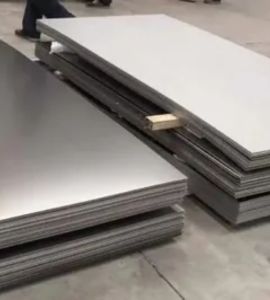

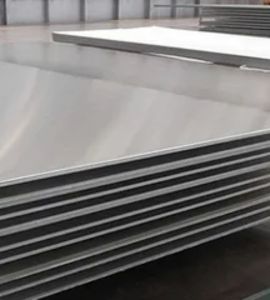

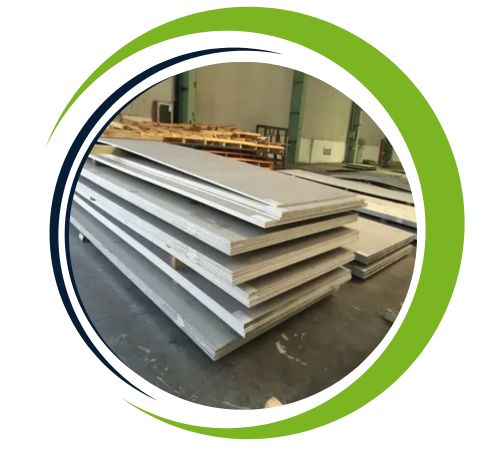

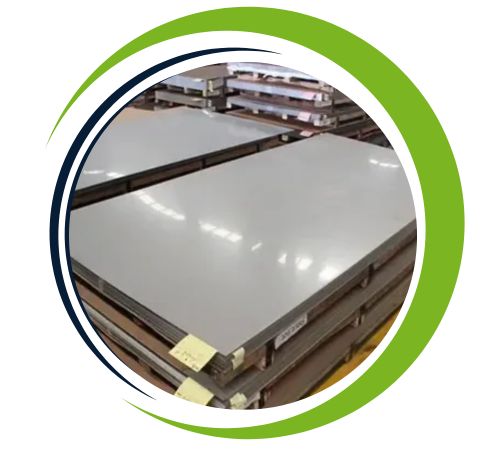

Smith Fittings, a top-notch manufacturer and supplier located in Canberra, Australia, specializes in high-performance **Nimonic 90 Sheets and Plates**. These products are designed to deliver exceptional strength, creep resistance, and durability, especially in high-temperature settings. Crafted from a nickel-based superalloy, these sheets and plates adhere to strict international quality standards, ensuring outstanding mechanical stability, oxidation resistance, and precise dimensions. With a blend of cutting-edge production methods and thorough quality control, Smith Fittings consistently provides reliable products. They cater to various industries, including aerospace, power generation, and chemical processing, offering Nimonic 90 Sheets and Plates that are perfect for critical applications where long-term performance and structural integrity are essential.
**Nimonic 90 Sheets and Plates** mainly consist of nickel (around 72%), chromium (about 14%), cobalt (roughly 12%), titanium (approximately 1%), and aluminum (close to 1%). These high-performance alloys boast a tensile strength ranging from 750 to 850 MPa, along with excellent creep and fatigue resistance, and remarkable oxidation resistance at elevated temperatures of up to 750–800°C. They maintain their dimensional stability and mechanical integrity even under extreme thermal and mechanical stress, making them ideal for demanding engineering and industrial applications that require long-lasting high-temperature performance and durability.
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Plate, Sheet and Strip : | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208 |
| Grade | Ni | Cr | Co | Ti | Al | C | Si | Cu | Fe | Mn | B | S | Zr | Pb |
| Nimonic 90 | Bal | 18-21 | 15-21 | 2-3 | 1-2 | 0.2 max | 1.0 max | 0.2 max | 1.5 max | 1.0 max | 0.02 max | 0.015 max | 0.15 max | 0.0020 max |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 1150 MPa | 725 MPa | 30% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Josh Sheets and Plates based in Canberra, Australia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Nimonic 90 Sheets and Plates offer exceptional advantages for high-performance applications. They exhibit superior heat resistance, making them suitable for extreme temperatures up to 920°C. The alloy’s high tensile and yield strength ensures durability under mechanical stress. Excellent oxidation and corrosion resistance enhance longevity in challenging environments. With superior creep and fatigue resistance, they are ideal for high-stress and cyclic-load conditions. Lightweight yet robust, these sheets and plates are widely used in aerospace, power generation, and automotive industries, delivering reliability and efficiency in demanding engineering and industrial applications.
| WEIGHT PER NIMONIC SHEET : | ||||
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | – | – | 1.44 |
| 0.20 | 3.20 | – | – | 1.60 |
| 0.22 | 3.52 | – | – | 1.76 |
| 0.24 | 3.84 | – | – | 1.92 |
| 0.27 | 4.32 | – | – | 2.16 |
| 0.28 | 4.48 | – | – | 2.24 |
| 0.32 | 5.12 | – | – | 2.56 |
| 0.38 | 6.08 | – | – | 3.04 |
| 0.44 | 7.04 | 11.00 | – | 3.52 |
| 0.50 | 8.00 | 12.50 | – | 4.00 |
| 0.56 | 8.96 | 14.00 | – | 4.48 |
| 0.63 | 10.08 | 15.75 | – | 5.04 |
| 0.75 | 12.00 | 18.75 | – | 6.00 |
| 0.88 | 14.08 | 22.00 | – | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
Yes, we offer custom sizes for Nimonic 90 Sheets and Plates to meet specific project needs. Our team at Josh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
**Nimonic 90 Sheets and Plates** find extensive use in industries that need high-temperature strength, corrosion resistance, and durability. They’re commonly utilized in **aerospace turbine components, jet engines, and gas turbines**. In the **power generation sector**, you’ll find them in **boiler parts, heat exchangers, and high-temperature structural components**. Their impressive creep resistance, oxidation stability, and mechanical performance also make them suitable for **chemical processing equipment, furnace parts, and industrial machinery**. Nimonic 90 Sheets and Plates guarantee reliable long-term performance in even the most challenging environments.
