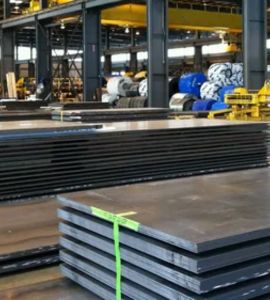

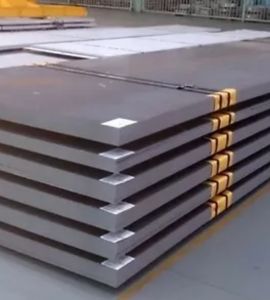

Josh Sheetsandplates, a reputable manufacturer and supplier located in Canberra, Australia, has built a solid reputation for providing top-notch steel products designed to meet industrial needs. One of their standout offerings is the SA516 Gr 60-70 Dual TC Boiler Sheet and Plate, known for its exceptional performance and reliability. These plates are crafted to adhere to the rigorous standards of pressure vessel and boiler fabrication, boasting remarkable weldability, toughness, and the ability to withstand high-temperature conditions. With a blend of cutting-edge manufacturing techniques and strict quality control, Josh Sheetsandplates ensures that each plate not only meets international standards but also surpasses customer expectations across a variety of industries.
The SA516 Gr 60-70 Dual TC Boiler Sheet and Plate is primarily made up of carbon, manganese, phosphorus, sulfur, and silicon, along with carefully controlled micro-alloying elements that boost strength and toughness. These plates showcase impressive tensile strength ranging from 415 to 585 MPa, with yield strength between 260 and 485 MPa, depending on the specific grade. They also feature outstanding notch toughness and elongation, ensuring they remain durable under high pressure and temperature. The dual test certification (Gr 60 & 70) guarantees consistent mechanical performance, making them perfect for heavy-duty boiler and pressure vessel applications.
Grade : ASME SA 516 GR.60 Boiler and Pressure Vessel Steel Plates
Width : 1500mm-3000mm
Thickness : 3mm-600mm
Length : 3000mm-11000mm
Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT
| Grades | C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 60 | 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| 70N | 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Grades | Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 60 | 485-620 (70-90) | 260 (38) | 17 | 21 |
| 70N | 485-620 (70-90) | 260 (38) | 17 | 21 |
| Grades | British Standard | European Norm | ASTM/ASME | DIN |
| 60 | BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
| 70N | BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA516 Gr 60-70 Dual TC Boiler Sheets and Plates offer exceptional strength, durability, and reliability, making them ideal for high-pressure and high-temperature applications. These plates provide excellent weldability and toughness, even in low-temperature conditions, ensuring structural integrity in critical environments. They exhibit superior resistance to corrosion and cracking, enhancing longevity and safety in boiler and pressure vessel operations. Dual test certifications ensure compliance with stringent industry standards, offering versatility across various industries such as oil and gas, power generation, and chemical processing. Their cost-effectiveness further adds to their appeal.
Industries that require high-pressure and high-temperature performance widely utilize the SA516 Gr 60-70 Dual TC Boiler Sheet and Plate. Its remarkable mechanical strength and weldability make it an excellent choice for manufacturing boilers, heat exchangers, storage tanks, and pressure vessels in the oil, gas, and petrochemical sectors. Furthermore, it finds applications in power plants, refineries, and marine engineering for fabricating components that endure extreme operating conditions. The dual certification provides flexibility in design and material selection, ensuring reliable performance and a long service life in both moderate and severe thermal and pressure environments.
