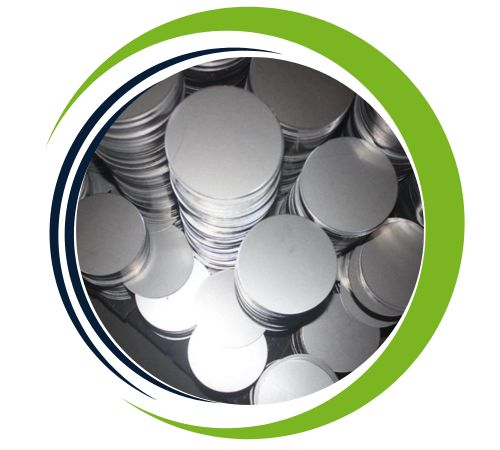

Smith Fittings, located in Canberra, Australia, has built a solid reputation as a reliable manufacturer and supplier of **Stainless Steel 316 Circles**. These circles are celebrated for their outstanding corrosion resistance, durability, and mechanical strength. Crafted from austenitic stainless steel that includes molybdenum, they offer exceptional protection against pitting, crevice corrosion, and chemical attacks, especially in environments rich in chlorides and marine settings. Smith Fittings is committed to precision manufacturing and rigorous quality control, ensuring that their 316 circles meet the high demands of industrial, architectural, and marine applications. Their products adhere to international standards, guaranteeing dependable performance and long-lasting structural integrity even in the toughest conditions.
**Stainless Steel 316 Circles** are composed of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), which significantly boost their corrosion resistance and mechanical stability. They boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. With a density of 8.0 g/cm³ and a melting range of 1375–1400°C, these circles maintain impressive toughness, weldability, and formability, ensuring they perform reliably in high-temperature and corrosive environments.
| Standard | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |

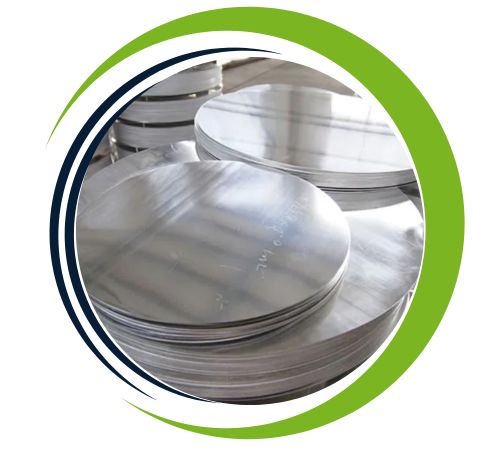

| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |

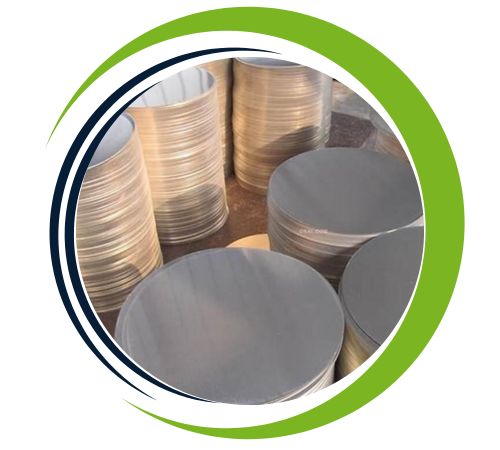

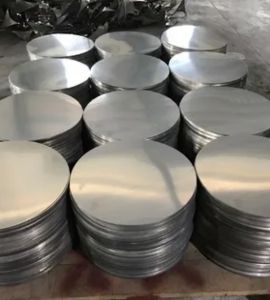

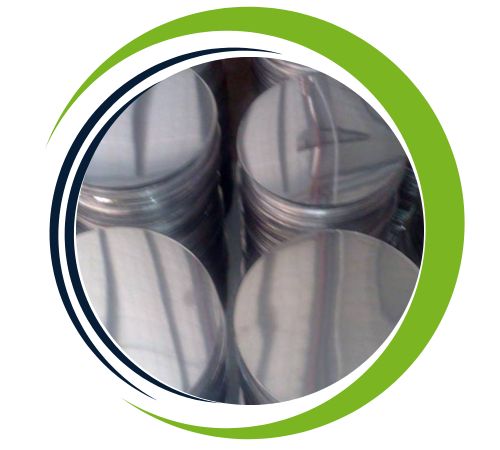

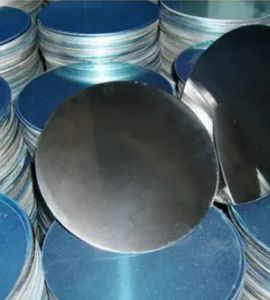

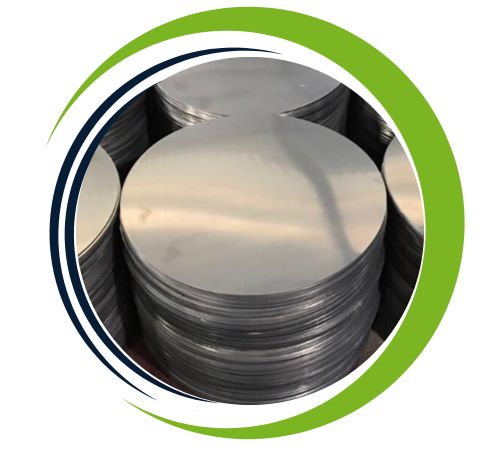

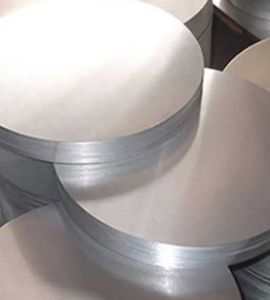

| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Cnc Finish, Polished Unique, Hot Rolled Circle.. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Grades | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| Size | 18 G. | 19 G. | 20 G. | 22 G. | 24 G. | 26 G. |
| .4.5 | .0-107 | 0-085 | 0-080 | 0-062 | 0.049 | 0-040 |
| 5 | 0-120 | 0-095 | 0-090 | 0-070 | 0-055 | 0-045 |
| 5.5 | 0-146 | 0-119 | 0-109 | 0-085 | 0-066 | 0-054 |
| 6 | 0-172 | 0-136 | 0-130 | 0-100 | 0-079 | 0-064 |
| 6.5 | 0-200 | 0-153 | 0-150 | 0-128 | 0-093 | 0-074 |
| 7 | 0-235 | 0-190 | 0-176 | 0-136 | 0-107 | 0-088 |
| 7.5 | 0.270 | 0.212 | 0.201 | 0-157 | 0-123 | 0-100 |
| 8 | 0-307 | 0-240 | 0-230 | 0-180 | 0-140 | 0-115 |
| 8.5 | 0-347 | 0-270 | 0-262 | 0-202 | 0-156 | 0-130 |
| 9 | 0-388 | 0-330 | 0-301 | 0-230 | 0-178 | 0-145 |
| 9.5 | 0-472 | 0-342 | 0-324 | 0-252 | 0-198 | 0-162 |
| 10 | 0-480 | 0-380 | 0-360 | 0-280 | 0-220 | 0-180 |
| 11 | 0-580 | 0-450 | 0-435 | 0-338 | 0-266 | 0-218 |
| 12 | 0-690 | 0-540 | 0-518 | 0-403 | 0-318 | 0-253 |
| 13 | 0-811 | 0-640 | 0-508 | 0-608 | 0-371 | 0-304 |
| 14 | 0-940 | 0-750 | 0-708 | 0-558 | 0-430 | 0-352 |
| 15 | 1-080 | 0-860 | 0-808 | 0-650 | 0-495 | 0-405 |
| 16 | 1-228 | 0-960 | 0-921 | 0-736 | 0-563 | 0-460 |
| 17 | 1-382 | 1-080 | 0-940 | 0-809 | 0-635 | 0-560 |
| 18 | 1-595 | 1-200 | 1-116 | 0-907 | 0-712 | 0-683 |
| 19 | 1-732 | 1-350 | 1-300 | 1-010 | 0-794 | 0-750 |
| 20 | 1-920 | 1-400 | 1-340 | 1-120 | 0-880 | 0-785 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316 circle offers a number of advantages, including excellent corrosion resistance, especially against chloride and salt water, making it ideal for marine, chemical and high-arm environmental Snakes high tensile strength, durability and the ability to withstand extreme temperatures to ensure long-term performance . Its excellent weldability and formability make it easy to manufacture in a variety of shapes. SS 316 is non-reactive, ensuring hygiene and safety in industries such as food processing and pharmaceuticals. Additionally, it resists pitting, crack corrosion and oxidation, resulting in lower maintenance costs and longer durability under extreme conditions.
**Stainless Steel 316 Circles** find their place in a variety of applications that demand both corrosion resistance and structural durability. You’ll often see them in chemical processing equipment, marine components, heat exchangers, and machinery used in food or pharmaceutical processing. They’re also utilized in architectural and industrial frameworks, pressure vessels, and offshore platforms where resistance to acids, chlorides, and oxidizing environments is essential. Their exceptional durability and performance make them perfect for fabrication, structural, and high-performance engineering tasks in challenging operational conditions.
