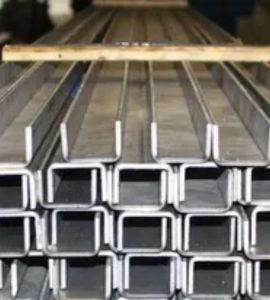

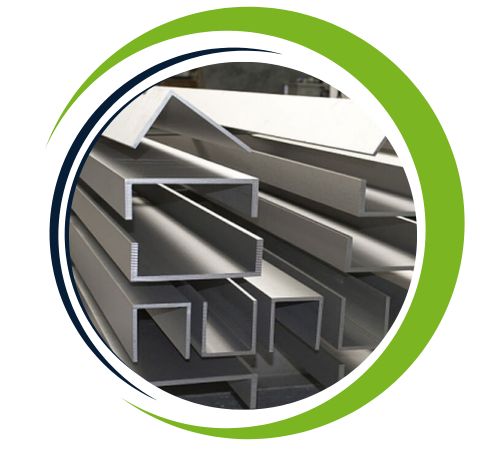

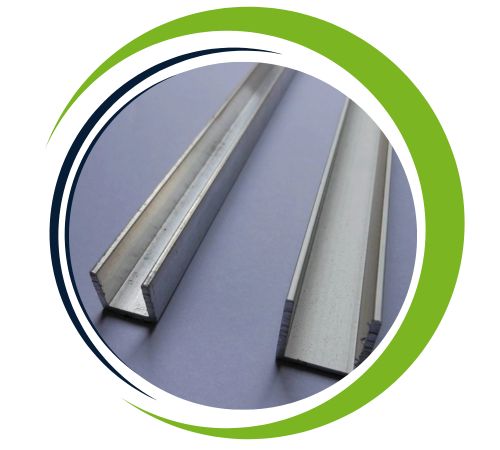

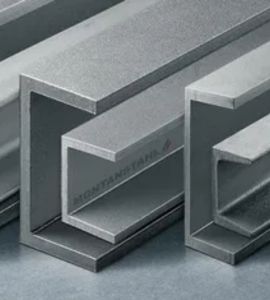

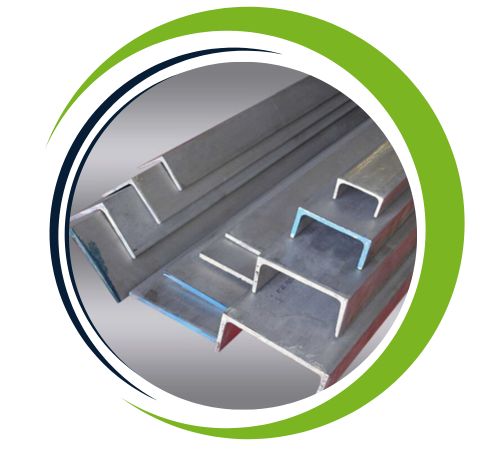

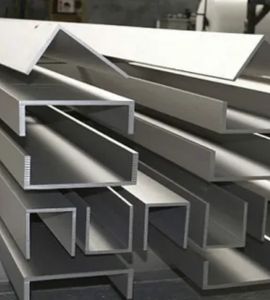

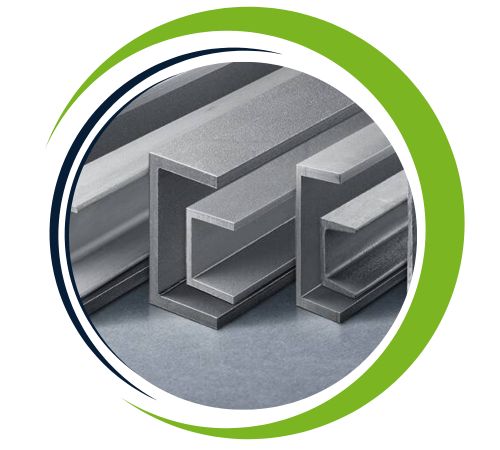

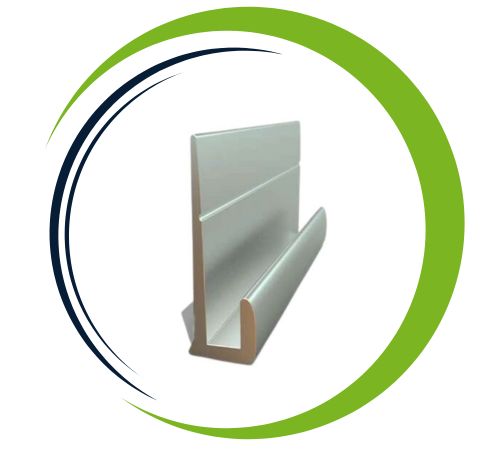

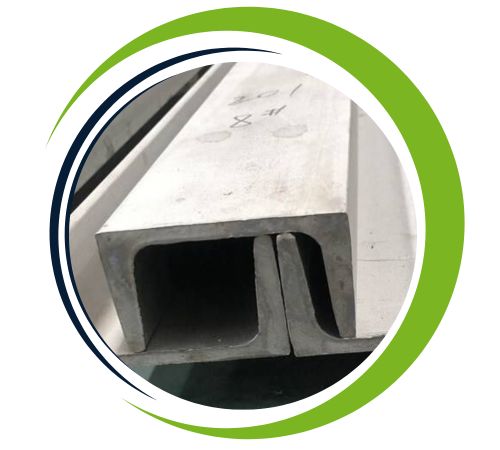

Smith Fittings, located in Canberra, Australia, has built a solid reputation as a manufacturer and supplier of **Stainless Steel 316Ti Channels**. These channels are celebrated for their exceptional corrosion resistance, impressive strength, and long-lasting durability. Crafted from titanium-stabilized austenitic stainless steel, they offer remarkable protection against intergranular corrosion and high-temperature scaling. Smith Fittings takes pride in producing 316Ti channels with precision, adhering to global quality standards, making them perfect for demanding industrial, marine, and architectural applications. Thanks to cutting-edge technology and rigorous quality control, the company guarantees reliability and a long service life for all its 316Ti channel products.
**Stainless Steel 316Ti Channel** is composed of chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and titanium, which boosts its stability against sensitization and corrosion in high-temperature settings. It boasts a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. With a density of around 8.0 g/cm³, its melting point falls between 1375–1400°C. This alloy is known for its excellent weldability, formability, and toughness, maintaining outstanding mechanical properties in both cryogenic and elevated temperature conditions.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| ELEMENT | 316 | 316L | 316TI |
|---|---|---|---|
| NI | 11.0 – 14.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| C | 0.08 max | 0.035 max | 0.08 max |
| MN | 2.0 max | 2.0 max | 2.0 max |
| P | 0.045 max | 0.045 max | 0.045 max |
| S | 0.30 max | 0.30 max | 0.30 max |
| SI | 1.0 max | 1.0 max | 0.75 max |
| CR | 16.0 – 18.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| MO | 2.0 – 3.0 | 2.0 – 3.0 | 2.0 – 3.0 |
| TI | 5x(C+N) – 0.70 | ||
| N | 0.10 max |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Josh Sheets and Plates based in Canberra, Australia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless Steel 316Ti channels offer several key advantages, particularly in high-temperature and corrosive environments. The addition of titanium enhances the material’s resistance to carbide precipitation, improving its weldability and stability at elevated temperatures. With excellent resistance to oxidation, pitting, and stress corrosion, these channels are ideal for use in harsh industrial environments, including chemical processing, marine, and food industries. They provide exceptional strength and durability, even in aggressive conditions. Stainless Steel 316Ti channels are highly versatile, offering long-lasting, reliable performance with minimal maintenance, making them a cost-effective choice for demanding applications.
Yes, we offer custom sizes for Stainless Steel 316Ti Channel to meet specific project needs. Our team at Josh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| Description | Process | G kg/m | h mm | b mm | tw mm | tf mm | r1 mm | r2 mm |
|---|---|---|---|---|---|---|---|---|
| C 50X25X5X6 | Hot Rolled | 3.95 | 50 | 25 | 5 | 6 | 6 | 3 |
| C 75X40X5X7 | Hot Rolled/Laser | 6.95 | 75 | 40 | 5 | 7 | 8 | 4 |
| C 100X50X5X7.5 | Hot Rolled/Laser | 9.37 | 100 | 50 | 5 | 7.5 | 8 | 4 |
| C 125X65X6X8 | Hot Rolled/Laser | 13.4 | 125 | 65 | 6 | 8 | 8 | 4 |
| C 150X75X6.5X10 | Hot Rolled/Laser | 18.62 | 150 | 75 | 6.5 | 10 | 10 | 5 |
| C 150X75X9X12.5 | Hot Rolled/Laser | 24.01 | 150 | 75 | 9 | 12.5 | 5 | 1 |
| C 180X75X7X10.5 | Hot Rolled/Laser | 21.52 | 180 | 75 | 7 | 10 | 2 | 1 |
| C 200X80X7.5X11 | Hot Rolled/Laser | 24.77 | 200 | 80 | 7.5 | 11 | 2 | 1 |
| C 200X90X8X13.5 | Hot Rolled/Laser | 30.53 | 200 | 90 | 8 | 13.5 | 2 | 1 |
| C 230X80X8X12 | Hot Rolled/Laser | 28.56 | 230 | 80 | 8 | 12 | 2 | 1 |
| C 250X90X9X13 | Hot Rolled/Laser | 34.86 | 250 | 90 | 9 | 13 | 2 | 1 |
| C 250X90X11X14.5 | Hot Rolled/Laser | 40.34 | 250 | 90 | 11 | 14.5 | 2 | 1 |
| C 300X90X9X12 | Hot Rolled/Laser | 37.17 | 300 | 90 | 9 | 12 | 2 | 1 |
| C 300X90X10X15.5 | Hot Rolled/Laser | 43.85 | 300 | 90 | 10 | 15.5 | 2 | 1 |
| C 300X90X12X16 | Hot Rolled/Laser | 48.78 | 300 | 90 | 12 | 16 | 2 | 1 |
| C 380X100X10.5X16 | Hot Rolled/Laser | 54.85 | 380 | 100 | 10.5 | 16 | 2 | 1 |
| C 380X100X13X16.5 | Hot Rolled/Laser | 62.5 | 380 | 100 | 13 | 16.5 | 2 | 1 |
| C 380X100X13X20 | Hot Rolled/Laser | 67.37 | 380 | 100 | 13 | 20 | 2 | 1 |
**Stainless Steel 316Ti Channels** find their place in various industries that demand corrosion resistance and heat stability. You’ll often see them in chemical processing equipment, marine structures, heat exchangers, pressure vessels, and food processing systems. They’re also utilized in architectural construction, power generation plants, and offshore platforms where high strength and durability are crucial. Thanks to their resistance to oxidation, scaling, and chloride-induced corrosion, 316Ti channels are perfectly suited for harsh industrial and coastal environments, ensuring they deliver long-lasting performance and structural integrity.
