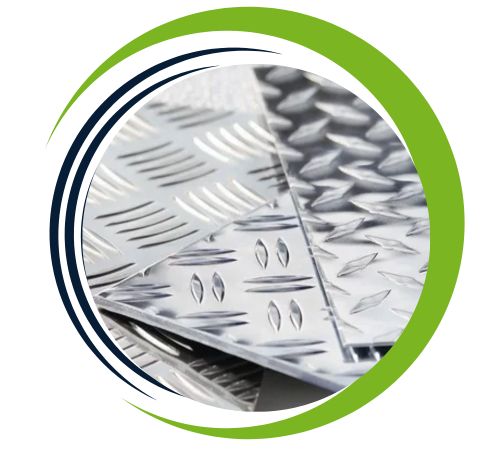

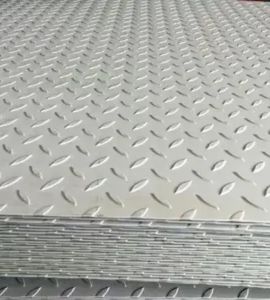

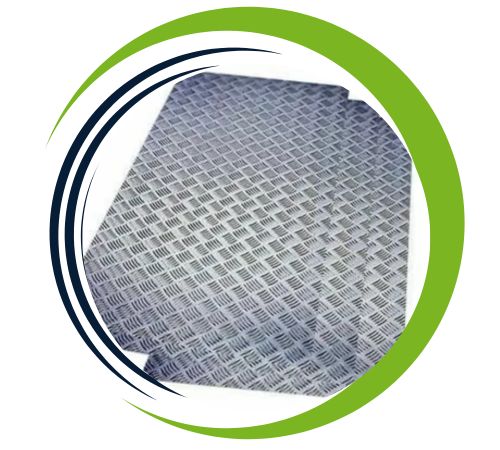

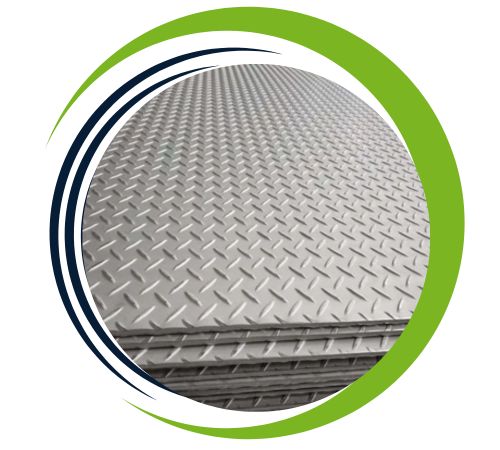

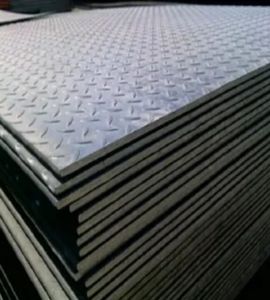

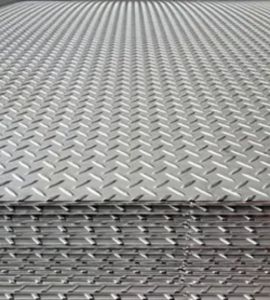

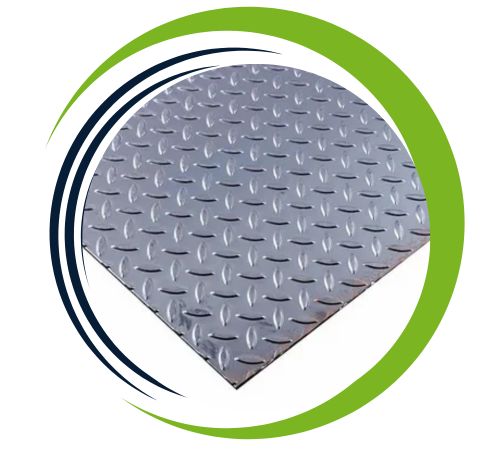

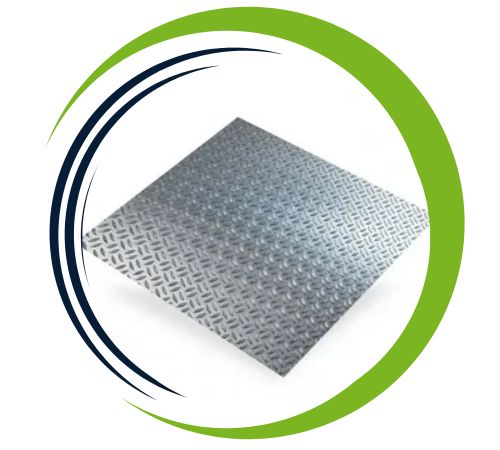

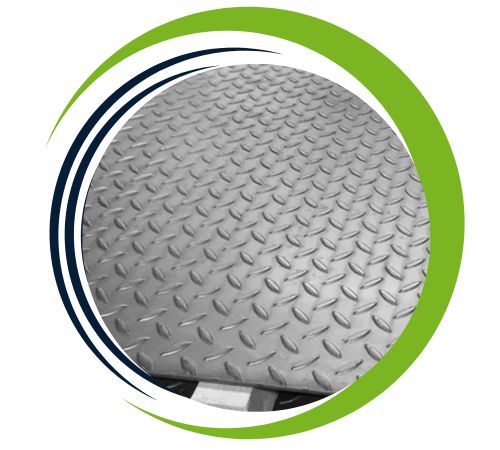

Smith Fittings, a top-notch manufacturer and supplier located in Canberra, Australia, specializes in high-quality **Stainless Steel Chequered Sheets and Plates** that are celebrated for their impressive strength, durability, and slip-resistant surface. These sheets and plates are meticulously crafted to adhere to international standards, ensuring exceptional corrosion resistance and mechanical performance even in tough environments. Perfect for industrial, architectural, and structural uses, Smith Fittings’ Stainless Steel Chequered Sheets and Plates blend toughness with visual appeal. Their distinctive patterned surface not only boosts safety but also preserves structural integrity, making them a go-to choice for industries that demand reliable, long-lasting, and high-performance materials.
**Stainless Steel Chequered Sheets and Plates** are mainly made up of iron, with 16–20% chromium, 8–12% nickel, and trace amounts of carbon, manganese, and silicon. This specific blend guarantees outstanding resistance to corrosion, oxidation, and wear. They boast a tensile strength ranging from 515–620 MPa, yield strength of 205–310 MPa, and good elongation properties. The patterned surface improves grip and safety, while the material itself maintains excellent toughness, weldability, and formability, making it ideal for industrial, structural, and decorative applications.
Specifications : ASTM A182 / ASME SA182
Standard : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1000mm x 2000mm, 1000mm x 2500mm, 1220mm x 2440mm, 1250mm x 2500mm, 1500mm x 3000mm
Thickness : 3mm – 5mm.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Grade : 304, 304L, 304H, 316, 316L, 317, 317L, 321, 310, 347, 904L Wire Mesh / Wire Netting ETC.
| Grade | C | Mn | P | S | Si | Cr | N | Ni | Fe |
| SS Chequered 304 Plates | 0.07max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | – | min: 8.0 max: 10.5 | – |
| SS Chequered 304L Sheets | 0.03max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | 0.10 max | min: 8.0 max: 12.0 | – |
| SS Chequered 304H Plate | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | 0.75 max | 2.0 max | min: 0.04 max:0.10 | 0.045 max | 0.10 max | 0.03 max | – |
| SS Checkered 316 Sheets | Min | – | – | 0 | – | – | 10.0 | 16.0 | – |
|---|---|---|---|---|---|---|---|---|---|
| Max | 0.08 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Checker 316L Plates | Min | – | – | – | – | – | 10.0 | 16.0 | – |
| Max | 0.03 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Chequered 316H Sheet | Min | 0.04 | 0 | – | 0.04 | – | 10.0 | 16.0 | – |
| max | 0.10 | 0.75 | 0.045 | 0.10 | 0.03 | 14.0 | 18.0 | – |
| Grade | Density | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point | Elongation |
| Stainless Steel 304 / 304L Checkered Plate | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 304H Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 40 % |
| Stainless Steel 310 Checker Plate | 7.9 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1402 °C (2555 °F) | 40 % |
| Stainless Steel 316 Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 316L Checker Plate | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1399 °C (2550 °F) | 35 % |
| Stainless Steel 317 Checker Sheets | 7.9 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 321 Checkered Plates | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1457 °C (2650 °F) | 35 % |
| Stainless Steel 347 Checker Sheets | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1454 °C (2650 °F) | 35 % |
| Stainless Steel 904L Checker Plate | 7.95 g/cm3 | Psi 32000, MPa 220 | Psi 71000, MPa 490 | 1350 °C (2460 °F) | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 304 | 1.4301 | S30400 |
| SS 304L | 1.4306 / 1.4307 | S30403 |
| SS 304H | 1.4301 | S30409 |
| SS 310 | 1.4841 | S31000 |
| SS 310S | 1.4845 | S31008 |
| SS 310H | – | S31009 |
| SS 316 | 1.4401 / 1.4436 | S31600 |
| SS 316L | 1.4404 / 1.4435 | S31603 |
| SS 316H | 1.4401 | S31609 |
| SS 316Ti | 1.4571 | S31635 |
| SS 317 | 1.4449 | S31700 |
| SS 317L | 1.4438 | S31703 |
| SS 321 | 1.4541 | S32100 |
| SS 321H | 1.4878 | S32109 |
| SS 347 | 1.4550 | S34700 |
| SS 347H | 1.4961 | S34709 |
| SS 904L | 1.4539 | N08904 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Josh Sheets and Plates based in Canberra, Australia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless Steel Chequered Sheets and Plates offer several advantages, including enhanced slip resistance, which is ideal for floors, stairs, and walkways. Their durability and corrosion resistance ensures long-lasting performance in harsh environments. The unique pattern provides aesthetic appeal and functionality, improving traction in wet or oily conditions. They are lightweight yet strong, ensuring easy handling and installation. They are also low-maintenance, easy to clean, and versatile, and they are widely used in industries like construction, automotive, and marine for decorative and functional purposes.
| Thickness | Plate Weight per Unit Area | Density |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
**Stainless Steel Chequered Sheets and Plates** find extensive use across various sectors, including construction, marine, automotive, and manufacturing. They are particularly well-suited for flooring, walkways, stair treads, ramps, platforms, and loading docks where slip resistance is essential. In architectural and industrial settings, they serve as cladding, decorative panels, and protective surfaces. With their blend of corrosion resistance, strength, and safety features, they are perfect for both indoor and outdoor environments. Smith Fittings’ Stainless Steel Chequered Sheets and Plates deliver dependable, long-lasting performance, ensuring safety and durability in even the most demanding applications.
