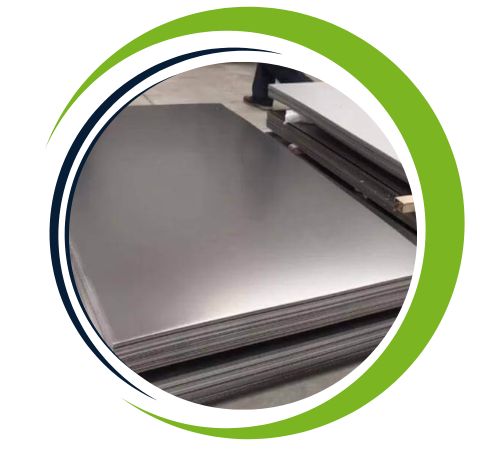

Smith Fittings is a top-notch manufacturer and supplier located in Canberra, Australia, specializing in high-quality **Aluminium 2024 T3511 Plates and Sheets**. These products are celebrated for their remarkable strength, outstanding fatigue resistance, and lightweight characteristics. Crafted with precision to adhere to international standards, these plates and sheets offer exceptional durability, precise dimensions, and easy fabrication, making them perfect for demanding sectors like aerospace, automotive, and industrial applications. At Smith Fittings, advanced production techniques and rigorous quality control ensure that their **Aluminium 2024 T3511 Plates and Sheets** deliver both mechanical reliability and versatility. Catering to industries that depend on high-performance materials, the company provides solutions that guarantee long-term operational efficiency and structural integrity, even under intense stress.
The **Aluminium 2024 T3511 Plates and Sheets** are primarily made up of aluminium, containing 3.8–4.9% copper, 0.3–0.9% manganese, 1.2–1.8% magnesium, along with trace amounts of silicon and iron. This specific blend results in a tensile strength ranging from 425 to 470 MPa and a yield strength between 275 and 325 MPa. They boast excellent fatigue resistance, good machinability, and moderate corrosion resistance. These plates and sheets undergo heat treatment and stress relief, making them perfect for applications that require a high strength-to-weight ratio and long-lasting durability.
| Standards | ASTM B209 / ASME SB209 |
| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 0.2-50 |
| Width | 100-2600 |
| Length | 500-10000 |
| Surface | Bright, polished, hair line, brush, sand blast, embossed, etching, etc. |
| Finish | Mill, Customer specific finish |
| Aluminum Sheet/ Plate Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
| min. | Bal | 3.80 | 0.30 | 1.20 | ||||||
| max. | Bal | 0.50 | 0.50 | 4.90 | 0.90 | 1.80 | 0.10 | 0.25 | 0.15 | 0.05 |
| Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| (annealed) | 32 | 14 | 12 |
| T3 | 63 | 42 | 15 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aluminium 2024 T3511 Sheets and Plates offer outstanding advantages, including exceptional strength and fatigue resistance, making them ideal for high-performance aerospace, military, and engineering applications. The T3511 temper enhances the material’s structural integrity, ensuring reliability in demanding environments. These sheets and plates feature an excellent strength-to-weight ratio, critical for weight-sensitive industries like aviation. Their superior machinability allows for precise fabrication and complex designs. While the alloy has moderate corrosion resistance, it can be treated for enhanced durability, ensuring long-lasting performance. Aluminium 2024 T3511 is a top choice for high-stress applications.
Yes, we offer custom sizes for Aluminium 2024 T3511 Plates and Sheets to meet specific project needs. Our team at Josh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlCu4Mg1 | AU4G1 | 3.1355 | A92024 | AlCu4Mg1 | 2024 | AlCuMg2 |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
In the aerospace sector, **Aluminium 2024 T3511 Plates and Sheets** are commonly used for aircraft fuselage panels, wing structures, and other components that face high stress. They also find applications in the automotive and transportation industries for chassis, structural parts, and heavy-duty machinery components. Furthermore, these plates and sheets are ideal for industrial fabrication, tooling, and equipment that must withstand significant mechanical loads. With their structural stability, enduring performance, and dependable strength, **Aluminium 2024 T3511 Plates and Sheets** are truly suited for the rigorous demands of aerospace, automotive, and industrial applications.
