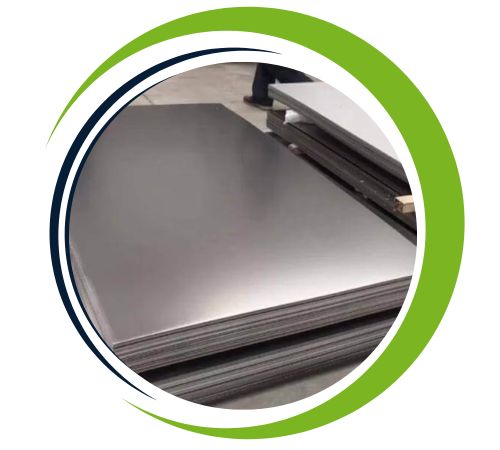

Smith Fittings is a top-notch manufacturer and supplier located in Canberra, Australia, specializing in high-quality **Aluminium 5005 Plates and Sheets**. These products are celebrated for their impressive corrosion resistance, moderate strength, and lightweight nature. Crafted with precision to meet international standards, these plates and sheets ensure reliable performance, durability, and easy fabrication for a wide range of industrial, architectural, and commercial uses. At Smith Fittings, advanced manufacturing techniques and strict quality control come together to deliver **Aluminium 5005 Plates and Sheets** that blend mechanical reliability with versatility. The company caters to various sectors, including construction, transportation, marine, and decorative applications, providing materials that guarantee structural integrity, long-lasting performance, and excellent workability.
**Aluminium 5005 Plates and Sheets** mainly consist of aluminium with 0.8–1.2% magnesium, along with small amounts of iron, silicon, and copper. This unique composition results in a tensile strength of about 180–240 MPa and a yield strength ranging from 70–150 MPa. They are known for their outstanding corrosion resistance, high ductility, and good weldability. Lightweight and durable, **Aluminium 5005 Plates and Sheets** are perfect for applications that demand both strength and resistance to environmental wear.
| Standards | ASTM B209 / ASME SB209 |
| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 0.2-50 |
| Width | 100-2600 |
| Length | 500-10000 |
| Surface | Bright, polished, hair line, brush, sand blast, embossed, etching, etc. |
| Finish | Mill, Customer specific finish |
| Aluminum Sheet/ Plate Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Chemical Properties | % Value |
| Silicon (Si) | 0.30 |
| Chromium (Cr) | 0.10 |
| Manganese (Mn) | 0.20 |
| Magnesium (Mg) | 0.5-1.1 |
| Copper (Cu) | 0.20 |
| Titanium (Ti) | – |
| Iron (Fe) | 0.7 |
| Zinc (Zn) | 0.25 |
| Aluminium (Al) | Balance |
| Property | Value |
| Proof Stress | 120 Min MPa |
| Tensile Strength | 145 – 185 MPa |
| Elongation at 50 mm | 3 Min % |
| Hardness Brinell | 47 HB |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aluminium 5005 Sheets and Plates offer numerous advantages, including excellent corrosion resistance, making them suitable for marine and outdoor environments. They have superior anodizing qualities, ensuring an attractive, durable finish ideal for architectural applications. Their lightweight nature allows for easy handling and fabrication, reducing transportation and installation costs. Aluminium 5005 demonstrates good weldability and moderate strength, providing versatility across various industries. Its non-heat-treatable but cold-workable property enhances strength when needed, making it a reliable choice for roofing, cladding, signage, and decorative applications where durability and aesthetics are key.
Yes, we offer custom sizes for Aluminium 5005 Plates and Sheets to meet specific project needs. Our team at Josh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Standard | UNS | ISO | BS | DIN |
| 5005 | A95005 | AlMg1 | N41 | 3.3315 |
| Properties | Metric | Imperial |
| Tensile strength | 130 MPa | 18855 psi |
| Yield strength | 125 MPa | 18130 psi |
| Shear strength | 83 MPa | 12039 psi |
| Fatigue strength | 55 MPa | 7977 psi |
| Elastic modulus | 70-80 GPa | 10153-11603 ksi |
| Poisson’s ratio | 0.33 | 0.33 |
| Elongation | 10% | 10% |
| Hardness | 35 | 35 |
These plates and sheets are widely utilized in industries that need corrosion-resistant, lightweight, and highly workable materials. They’re often found in roofing, siding, cladding, and decorative architectural projects thanks to their formability and attractive finish. In the marine and transportation fields, they serve as components for boats, vehicle panels, and protective structures. Moreover, these plates and sheets are ideal for general fabrication, HVAC systems, and chemical processing equipment. **Aluminium 5005 Plates and Sheets** deliver operational efficiency, long-lasting durability, and versatility across various industrial, commercial, and marine applications.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
