Smith Fittings, located in Canberra, Australia, stands out as a top-notch manufacturer and supplier of premium metal solutions, with a particular focus on Titanium Grade 5 Sheets and Plates. Known for their precision engineering and effective supply chain management, they cater to a variety of industries, including aerospace, medical, chemical, and marine. Titanium Grade 5, or Ti-6Al-4V, is a high-quality alloy that boasts remarkable strength, resistance to corrosion, and lightweight characteristics. Smith Fittings guarantees that each sheet and plate adheres to strict quality standards, ensuring dependable performance in critical applications. Their expertise and dedication have made them a reliable partner for high-performance titanium solutions throughout Australia.
Titanium Grade 5 (Ti-6Al-4V) is an alpha-beta titanium alloy made up of 90% titanium, 6% aluminum, and 4% vanadium, along with small amounts of iron and oxygen. This unique blend offers an impressive combination of high tensile strength, low density, and outstanding corrosion resistance. It also showcases superior fatigue strength, toughness, and weldability when compared to commercially pure titanium. With a tensile strength of about 950 MPa, a yield strength of around 880 MPa, and excellent elongation of 10–15%, Titanium Grade 5 Sheets and Plates are perfect for demanding structural and high-performance applications.
Titanium Sheets and Plates Specification : ASTM B265 / ASME SB265
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm

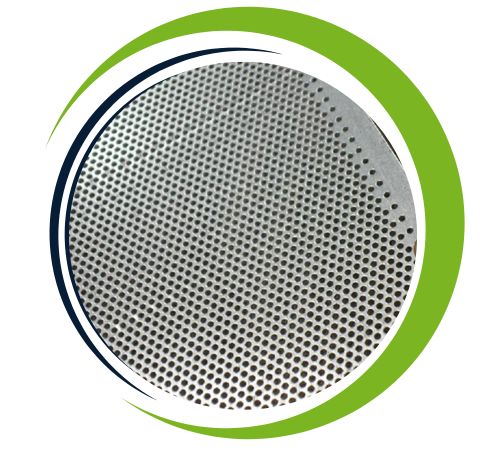

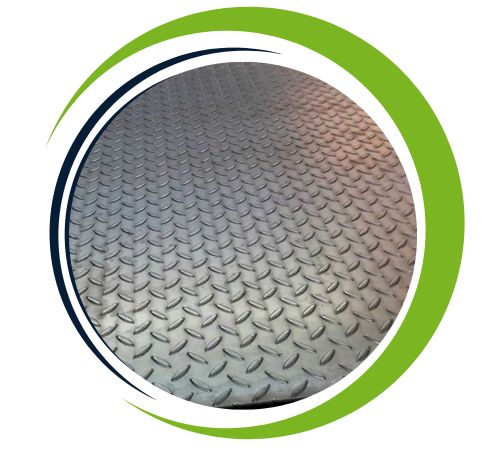

Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | Ti | C | Fe | O | Al | V |
| Titanium Gr 5 | 90 min | – | 0.25 max | 0.2 max | 6 min | 4 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Grade 5 | 3.7165 | N56400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Grade 5 (Ti-6Al-4V) sheets and plates offer exceptional strength-to-weight ratio, making them ideal for aerospace, automotive, and marine applications. They are highly corrosion-resistant, including in seawater and aggressive chemicals, ensuring long-term durability. Their high-temperature resistance allows them to perform in extreme environments. Titanium Grade 5 also boasts excellent fatigue resistance, low thermal expansion, and biocompatibility, making it suitable for medical devices. Additionally, it is lightweight, offering enhanced performance without compromising structural integrity while being easily machinable and weldable for versatile applications.
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in ) |
| .125 | 3.18 |
| .134 | 3.40 |
| .156 | 3.96 |
| .187 | 4.75 |
| .250 | 6.35 |
| .312 | 7.92 |
| .375 | 9.53 |
| .500 | 12.7 |
| .600 | 15.9 |
| .750 | 19.1 |
| .875 | 22.2 |
| 1 | 25.4 |
| 1.125 | 28.6 |
| 1.250 | 31.8 |
| 1.500 | 38.1 |
| 1.750 | 44.5 |
| 2 | 50.8 |
| 2.500 | 63.5 |
| 3 | 76.2 |
The Titanium Grade 5 Sheets and Plates from Smith Fittings find extensive use in aerospace components, medical implants, chemical processing equipment, marine structures, and high-performance automotive parts, thanks to their exceptional strength-to-weight ratio and corrosion resistance. They are particularly well-suited for airframes, turbine blades, surgical instruments, heat exchangers, and pressure vessels. Their ability to endure extreme temperatures and harsh environments makes them vital for critical engineering applications. Industries that prioritize durability, reliability, and long-lasting performance turn to Titanium Grade 5 Sheets and Plates, making Smith Fittings a go-to supplier for both custom and standard solutions.
