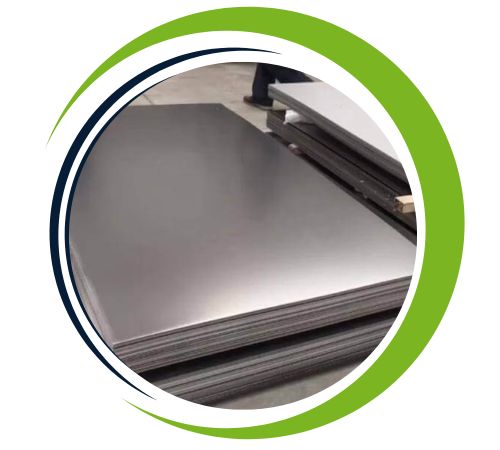

Josh Sheetsandplates, a top-notch manufacturer and supplier located in Canberra, Australia, specializes in high-quality Titanium Sheets and Plates designed to meet the demanding needs of today’s industries. Renowned for their impressive strength-to-weight ratio, resistance to corrosion, and overall durability, these titanium products are perfect for both industrial and commercial uses. With a commitment to precision manufacturing and rigorous quality control, Josh Sheetsandplates delivers reliable, high-performance titanium materials. Their Titanium Sheets and Plates find applications in aerospace, chemical processing, marine, and medical fields, offering unmatched performance and longevity even in extreme conditions and critical engineering tasks.
These Titanium Sheets and Plates are primarily made of titanium (usually over 99%), with carefully controlled additions of elements like aluminum, vanadium, or molybdenum to boost strength and thermal stability. They boast excellent mechanical properties, including a high tensile strength-to-weight ratio, low density, and remarkable resistance to corrosion and oxidation. Even at elevated temperatures, these sheets and plates maintain superior performance, showcasing exceptional fatigue resistance, formability, and biocompatibility, making them suitable for a wide range of high-performance and structural applications.
| ASTM Specification | ASTM A240 / ASME SA240 |
|---|---|
| Standard | MSRR, AMS, BS, ASTM A240 / ASME SA240 |
| Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, 4′ x 8′, Cut to size available |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |
| Condition | Polished on both sides |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Stock in form of | Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Test Report |
|
| Profiling | To provide a full profiling service we use numerous profiling methods including:
|
| Specialized in |
|
| We offer a comprehensive services designed to add value to your project: plasma cutting, waterjet cutting, laser cutting, bending and mechanical processing, edge preparation, welding, sawing and shearing. | |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| 6Al-4V TITANIUM SHEET SIZES | ||||||
|---|---|---|---|---|---|---|
| Thickness (in) | Size (in) | Appx. Weight Per Sheet (lbs) | ||||
| .016 | 36 x 96 | 8.8 | ||||
| .020 | 36 x 96 | 11.0 | ||||
| .025 | 36 x 96 | 13.8 | ||||
| .032 | 36 x 96 | 17.7 | ||||
| .040 | 36 x 96 | 22.1 | ||||
| .050 | 36 x 96 | 27.7 | ||||
| .063 | 36 x 96 | 34.9 | ||||
| .071 | 36 x 96 | 39.3 | ||||
| .080 | 36 x 96 | 44.2 | ||||
| .090 | 36 x 96 | 49.8 | ||||
| .100 | 36 x 96 | 55.3 | ||||
| .125 | 36 x 96 | 69.1 | ||||
| .160 | 36 x 96 | 88.5 | ||||
| .187 | 36 x 96 | 103.4 | ||||
| CP GRADE 2 TITANIUM SHEET | ||||||
|---|---|---|---|---|---|---|
| Thickness (in) | Size (in) | Appx. Weight Per Sheet (lbs) | ||||
| .020 | 48 x 120 | 18.8 | ||||
| .028 | 48 x 120 | 26.3 | ||||
| .035 | 48 x 120 | 32.9 | ||||
| .040 | 48 x 120 | 37.6 | ||||
| .050 | 48 x 120 | 46.9 | ||||
| .063 | 48 x 120 | 59.1 | ||||
| .078 | 48 x 120 | 73.2 | ||||
| .093 | 48 x 120 | 87.3 | ||||
| .125 | 48 x 120 | 117.4 | ||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium sheets and plates offer exceptional strength-to-weight ratio, making them ideal for lightweight yet strong applications. They exhibit excellent corrosion resistance in aggressive environments like seawater and chemicals. Titanium also has high-temperature resistance, ensuring performance in extreme conditions. Its biocompatibility makes it suitable for medical and aerospace applications. Furthermore, titanium is non-magnetic, has low thermal expansion, and is highly durable with a long service life. Its versatility, excellent weldability, and formability make titanium sheets and plates a preferred choice across various industries.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
In industries where lightweight strength and corrosion resistance are essential, Titanium Sheets and Plates are widely utilized. They play a crucial role in aerospace components such as airframes, turbine engines, and exhaust systems, as well as in marine equipment and shipbuilding. In the chemical and petrochemical sectors, they are the go-to choice for heat exchangers, reactors, and pressure vessels. Moreover, titanium plates are commonly used in medical implants, surgical instruments, and desalination plants due to their biocompatibility and resistance to seawater corrosion, ensuring reliability and long-lasting performance in challenging environments.
