Browse Our Collection
Get instant quotes that fit your budget perfectly.

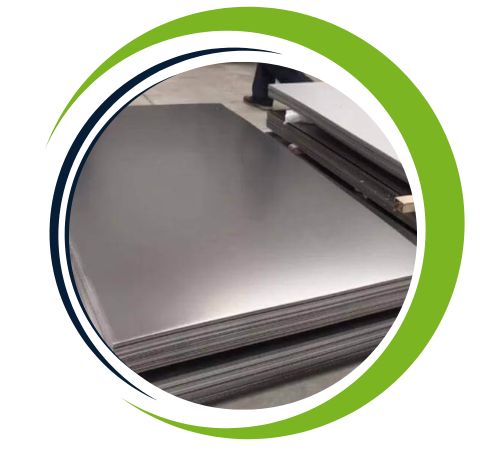

Smith Fittings, a top-notch manufacturer and supplier located in Canberra, Australia, specializes in high-quality Stainless Steel 13-8 PH Sheets and Plates. These products are celebrated for their remarkable strength, toughness, and resistance to corrosion. Designed to excel in tough environments, they’re perfect for both industrial and aerospace uses. Smith Fittings prides itself on precision manufacturing, rigorous quality control, and compliance with international standards, ensuring that their products perform reliably even under extreme conditions. The Stainless Steel 13-8 PH range is well-regarded for its durability, mechanical stability, and consistent quality across various engineering and structural applications.
Stainless Steel 13-8 PH is a martensitic precipitation-hardening stainless steel that contains about 12.25–13.25% Chromium, 7.5–8.5% Nickel, 1.1–2.0% Molybdenum, and up to 0.05% Carbon. It boasts impressive toughness and strength, with a tensile strength ranging from 1,030 to 1,400 MPa and a yield strength between 930 and 1,310 MPa after heat treatment. This alloy is known for its excellent resistance to stress corrosion cracking and retains high hardness and ductility, even in high-pressure or corrosive settings.
| Specifications | 1.4534.9 | UNS S13800 | AMS 5629 |
| Item: | Stainless Steel Plates (Hot rolled, cold rolled) |
| Standard: | JIS, AISI, ASTM, GB, DIN, EN, etc |
| Surface: | The surface and finish of Stainless-Steel Plates: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Width: | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length: | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Thickness: | 0.3~10.0mm |
| Form: | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| End: | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Cr 12.25 – 13.23% | Ni 7.50 – 8.50% | Mo 2.00 – 2.50% | Al 0.90 – 1.35% | N 0.010% | |||||
| Mn 0.10% | Si 0.10% | C 0.05% | P 0.010% | S 0.008% |
| Tensile (UTS)N/mm² | 0.2% YieldN/mm² | Elongation(50.8mm) %) | HardnessHRc | Reductionof Area |
| 1965 | 1896 | 2 | 57 | 10 |
| Alloy | UNS Number | WERKSTOFF NR. |
| 13-8 PH | UNS S13800 | 1.4534 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 13-8 PH sheets and plates offer many benefits, including high strength, good corrosion resistance and outstanding hardness. Their ability to resist stress corrosion cracking makes them ideal for complex applications in the aerospace, marine, and nuclear industries. These sheets and plates are very durable, perform well in high-pressure and extreme-temperature environments, and maintain consistent mechanical properties They can be easily welded and machined, providing a variety of options a they are used for many purposes. By serving long life and reliability they are a cost-effective solution for critical applications that require precision and durability.
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| Stainless Steel 13-8 PH PH 1D – Hot rolled, heat treated, pickled Plate & Sheet | 2.4–12.7 | max. 2032 |
| 2R – Stainless Steel 13-8 PH Cold-rolled, bright-annealed Sheet & Plate | 0.05–1.50 | 3–649 |
| 2H – Stainless Steel 13-8 PH Work hardened Plate & Sheet | 0.05–1.50 | 3–630 |
| 2B – Stainless Steel 13-8 PH Cold rolled, heat treated, pickled, skin passed Sheet & Plate | 0.25–8.0 | max. 2032 |
| 2D – Stainless Steel 13-8 PH Cold rolled, heat treated, pickled Plate & Sheet | 0.4–6.35 | max. 1524 |
| 2E – Stainless Steel 13-8 PH Cold rolled, heat treated, mechanically descaled Sheet & Plate | 0.4–8.0 | max. 2032 |
| 2R – Stainless Steel 13-8 PH Cold rolled, bright annealed Plate & Sheet | 0.25–3.5 | max. 1524 |
| 2H – Stainless Steel 13-8 PH Work hardened Sheet & Plate | 0.4–6.35 | max. 1524 |
| Stainless Steel 13-8 PH Polished, brushed Plate & Sheet | 0.5–4.0 | max. 1524 |
Yes, we offer custom sizes for Stainless Steel 13-8 PH Sheet and Plates to meet specific project needs. Our team at Josh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat capacity | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.282 | 1.72 | 97 | 0.11 | 0.00000589 | 2560 |
| Material | Size | Thickness |
|---|---|---|
| PLATES / SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
Stainless Steel 13-8 PH Sheets and Plates find their way into industries that require exceptional strength and corrosion resistance. You’ll often see them in aerospace components, landing gear parts, valves, shafts, chemical processing equipment, and marine hardware. They’re also crucial in the nuclear and petrochemical sectors, where reliability and high mechanical performance are a must. Thanks to their outstanding hardenability and oxidation resistance, these sheets and plates are perfect for high-stress structural applications. Smith Fittings provides these materials to meet the rigorous industrial and engineering standards expected around the globe.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
