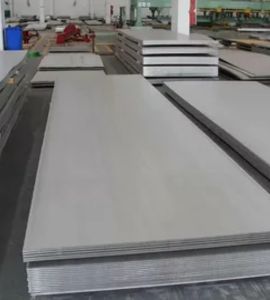

Smith Fittings, a reputable manufacturer and supplier located in Canberra, Australia, proudly offers top-notch **Stainless Steel 316 Sheet and Plates** that are celebrated for their outstanding corrosion resistance, strength, and durability. Crafted with cutting-edge production methods and high-quality raw materials, these sheets and plates deliver exceptional dimensional accuracy, a smooth surface finish, and long-lasting reliability. Smith Fittings guarantees that its Stainless Steel 316 products adhere to international quality standards, making them perfect for a variety of applications in industrial, marine, chemical, and food processing sectors. Their ability to resist pitting, crevice corrosion, and harsh oxidizing environments makes them a go-to choice for demanding projects that require both performance and longevity.
**Stainless Steel 316 Sheet and Plates** are austenitic stainless steels primarily made up of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), which significantly boosts their resistance to corrosion in chloride and acidic settings. These sheets and plates boast a tensile strength of around 515 MPa, along with excellent ductility, toughness, and high resistance to pitting and crevice corrosion. They also offer good weldability, formability, and thermal stability, making them ideal for applications that face mechanical stress and corrosive environments.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

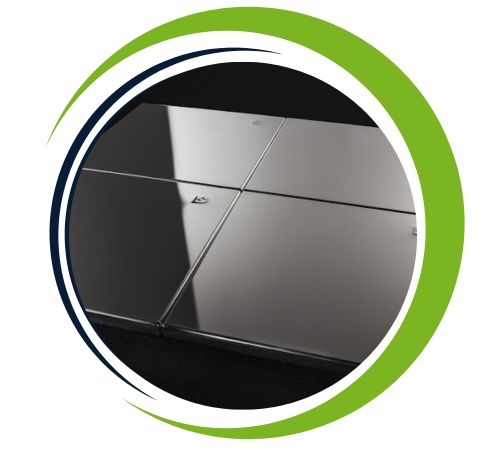

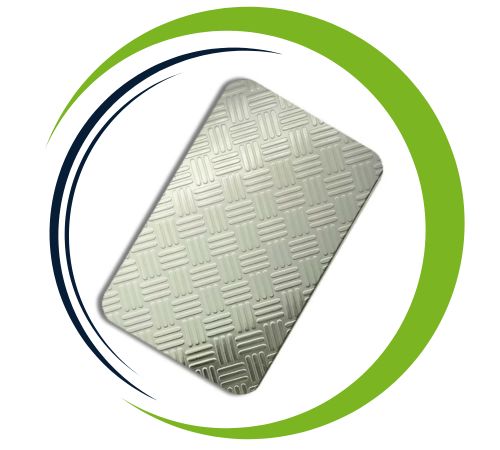

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

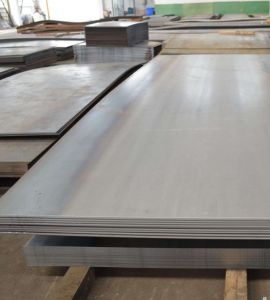

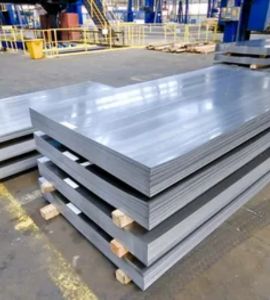

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

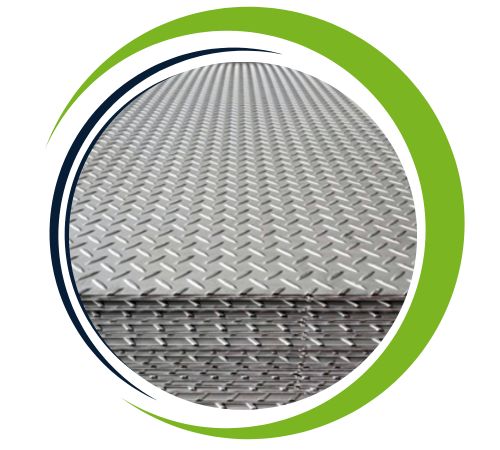

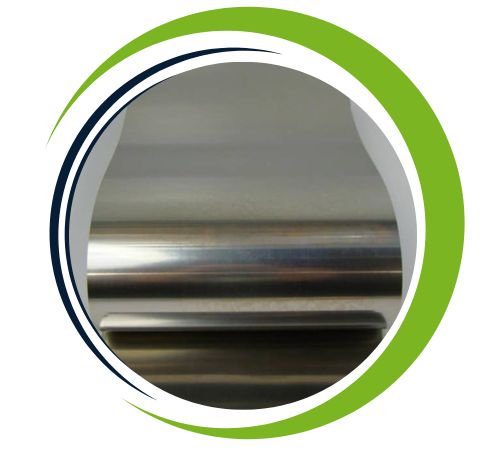

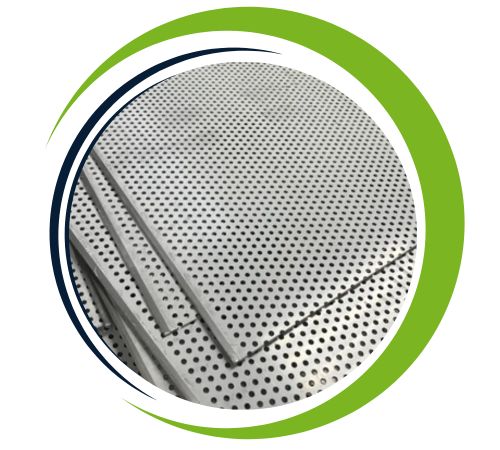

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316 sheets and plates have many advantages, including exceptional corrosion resistance, especially in high chloride environments, making them ideal for marine and chemical applications They are extremely durable, . it has good strength, resistance to potholes, crack corrosion, and oxidation . It also provides excellent weldability, formability and toughness at high and low temperatures. Stainless Steel 316 is non-magnetic and resistant to extreme conditions, providing durability and reliability. These properties make it ideal for food processing, pharmaceutical, marine, and other industries.
**Stainless Steel 316 Sheet and Plates** find extensive use in the chemical processing, marine, food processing, pharmaceutical, and petrochemical industries. They are perfect for constructing storage tanks, heat exchangers, chemical reactors, piping systems, and pressure vessels that endure harsh conditions. Additionally, they are utilized in marine equipment, pumps, valves, and architectural projects where high corrosion resistance and strength are essential. Their blend of durability, performance, and resistance to chloride and oxidizing conditions ensures they provide reliable service in industrial, commercial, and structural applications.
