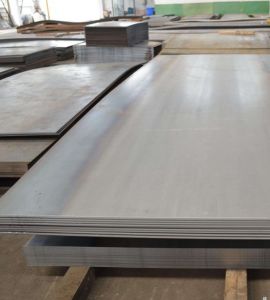

Smith Fittings, located in Canberra, Australia, stands out as a top manufacturer and supplier of **Stainless Steel 316H Sheets and Plates**. These products are celebrated for their remarkable strength, durability, and resistance to corrosion. Crafted from high-carbon austenitic stainless steel, they offer enhanced creep strength and exceptional performance even at elevated temperatures. Smith Fittings is committed to precision engineering and upholding strict quality standards, ensuring that their 316H sheets and plates are perfect for critical industrial applications. With a solid reputation for reliability and excellence, the company caters to various sectors that demand high-performance materials for challenging environments and long-lasting use.
**Stainless Steel 316H Sheets and Plates** are made up of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), along with a higher carbon content that boosts their strength at high temperatures and improves creep resistance. They boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. With a density of about 8.0 g/cm³ and a melting range of 1370–1400°C, these sheets and plates provide excellent toughness, weldability, and corrosion resistance in both oxidizing and reducing environments.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

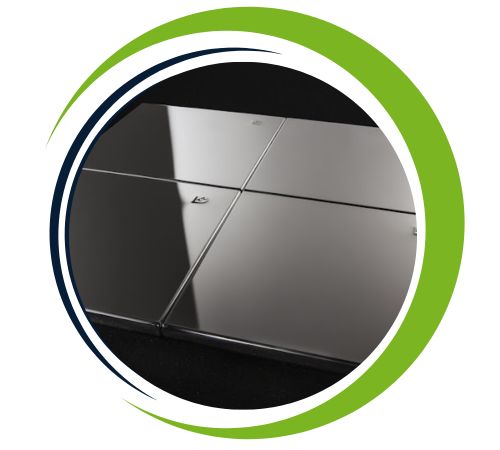

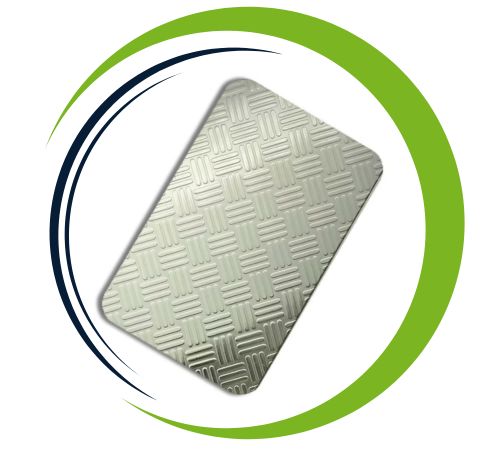

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

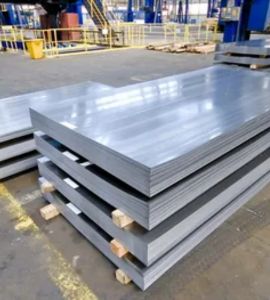

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

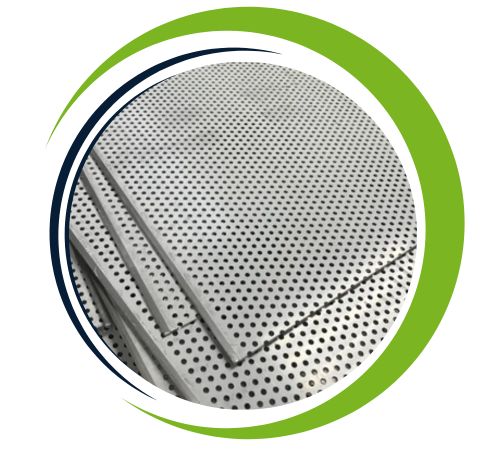

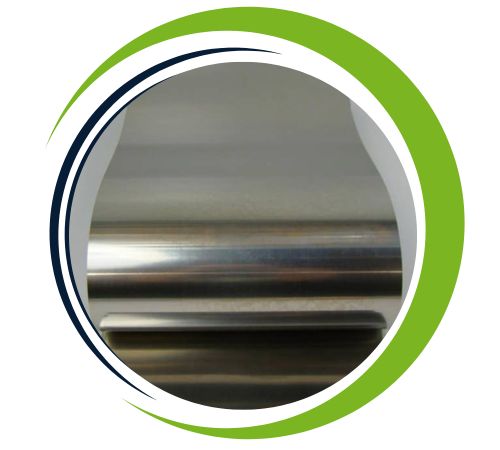

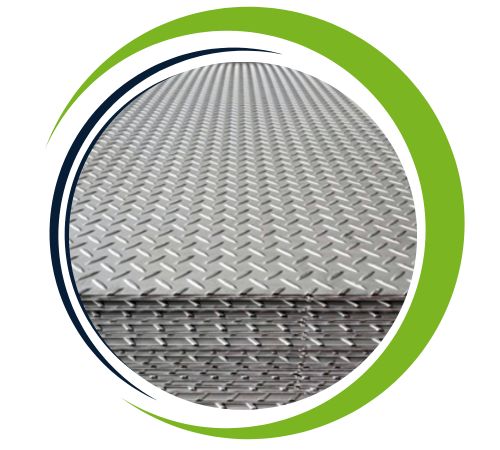

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16 – 18 | 2 – 3 | 10 – 14 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 316H | 1.4401 | S31609 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 316H Sheet and Plates offers several key benefits, especially in high-temperature environments. Its high carbon content also increases creep resistance, making it ideal for structural application in the chemical, petrochemical and marine industries. The material boasts excellent corrosion resistance, especially against chloride, pitting and crevice corrosion. It also performs well in extreme temperatures, maintaining its integrity in high temperature conditions. In addition, stainless steel 316H is durable, easy to manufacture, and highly resistant to oxidation, providing long service life with minimal maintenance These properties make it ideal for environmental production difficult to destroy.
These **Stainless Steel 316H Sheets and Plates** are extensively utilized in applications that require high-temperature strength and corrosion resistance. They are perfect for heat exchangers, boilers, pressure vessels, furnace components, and chemical processing equipment. Their durability and resistance to oxidation make them ideal for industries such as power generation, oil and gas, and petrochemicals. Furthermore, these sheets and plates find applications in marine, pharmaceutical, and food processing settings, delivering reliable performance and structural integrity even under harsh operating conditions and thermal stresses.
