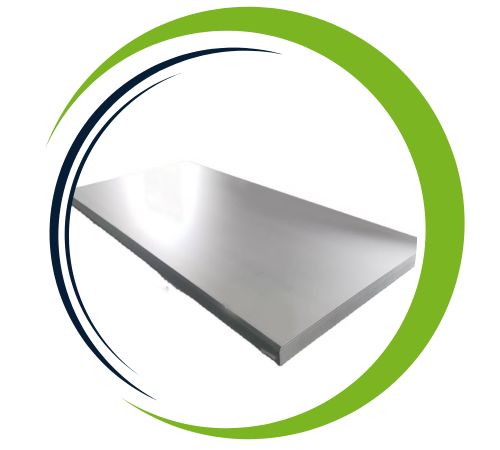

Smith Fittings, a reliable manufacturer and supplier located in Canberra, Australia, specializes in top-notch **Stainless Steel 410 Sheets and Plates** that are celebrated for their impressive corrosion resistance, moderate hardness, and strength at high temperatures. Designed to meet the demands of industrial, structural, and engineering applications, these sheets and plates deliver dependable performance even in mildly corrosive and elevated-temperature settings. Crafted to meet international standards, Smith Fittings’ Stainless Steel 410 Sheets and Plates guarantee exceptional dimensional accuracy, weldability, and mechanical stability. Their unique blend of toughness, wear resistance, and oxidation protection makes them perfect for machinery components, structural assemblies, and tooling applications that require durability, strength, and reliable operation.
**Stainless Steel 410 Sheets and Plates** are primarily made of iron, containing about 11–13% chromium along with trace amounts of carbon, manganese, and silicon. This martensitic stainless steel offers moderate corrosion resistance, a tensile strength ranging from 450–700 MPa, and a yield strength between 250–450 MPa. With good hardness, toughness, and dimensional stability, it’s well-suited for structural, industrial, and high-wear applications that demand both strength and reliability.
| Standard | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 4mm-100mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

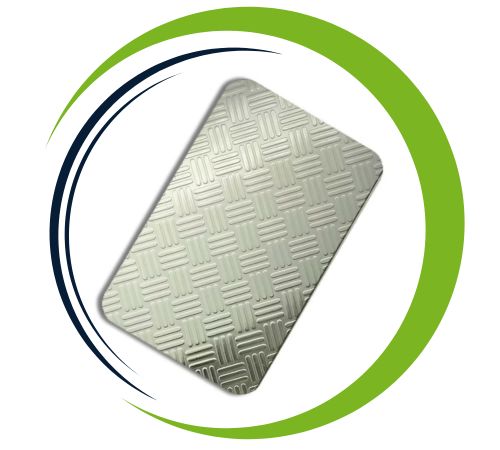

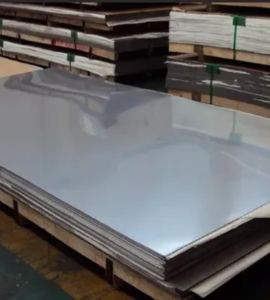

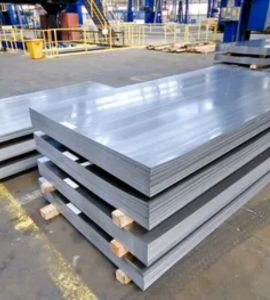

| Surface Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc |

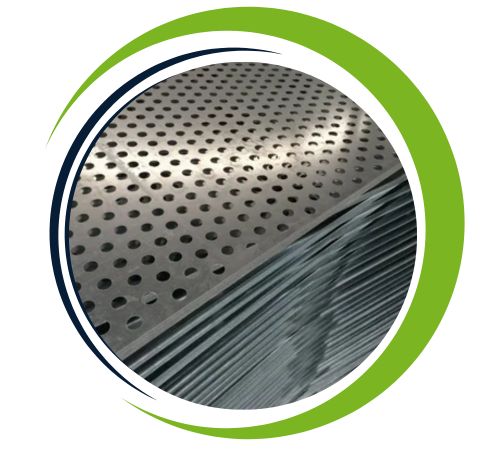

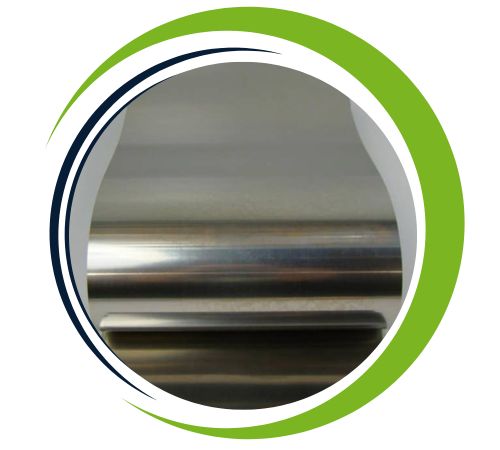

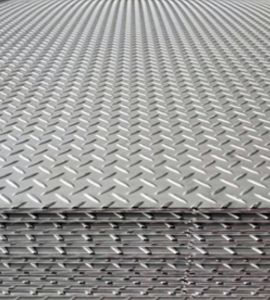

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | Cr | Mn | Si | Ni | C | P | S | Fe |
| SS 410 | 11.50 – 13.50 | 0.0 – 1.50 | 0.0 – 1.00 | 0.0 – 0.75 | 0.08 – 0.15 | 0.0 – 0.04 | 0.0 – 0.02 | Balance |
| Tensile Strength Ksi (Mpa) | 0.2% Offset Yield Strength Ksi (Mpa) | Elongation, % in 2″ (51 mm) | Hardening Response HRC | HRB |
| 65 (450) – 74 (510) | 30 (205) – 42 (290) | 20 – 34 | 38-45 | 82-96 |
| Grade | WERKSTOFF NR. | UNS | AISI | BS | SIS | EN | JIS | AFNOR |
| SS 410 | 1.4006 | S41000 | 410 | 410S21 | 2302 | X12Cr13 | 410 | Z10C13/Z13C13 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 410 | 7750 | 200 | 9.9 | 11.4 | 11.6 | 24.9 | 28.7 | 460 | 570 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 410 sheets and plates offer a variety of benefits including excellent hardness and corrosion resistance, making them ideal for hard-wearing components such as cutlery, fasteners and valves especially in soft corrosive environments moderate corrosion resistance due to chromium content. Their high strength and durability enable them to be used in buildings and mechanical components. In addition, they can be heat treated, increasing the mechanical properties. Simple and affordable devices further enhance their appeal, making them a great choice for industries such as automotive, aerospace and construction.
You’ll find **Stainless Steel 410 Sheets and Plates** commonly used in aerospace, automotive, marine, and industrial machinery sectors. They’re perfect for crafting shafts, gears, fasteners, valves, and structural supports. In industrial and tooling contexts, these sheets and plates perform reliably under moderate corrosive and high-stress conditions. Thanks to their corrosion resistance, mechanical strength, and wear resistance, Stainless Steel 410 Sheets and Plates from Smith Fittings are a go-to choice for high-performance, structural, and industrial applications that require materials built to last.
