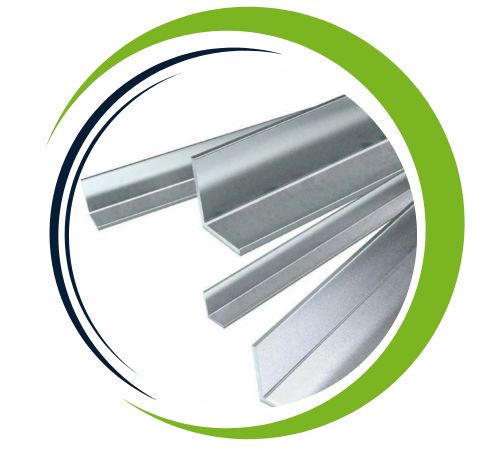

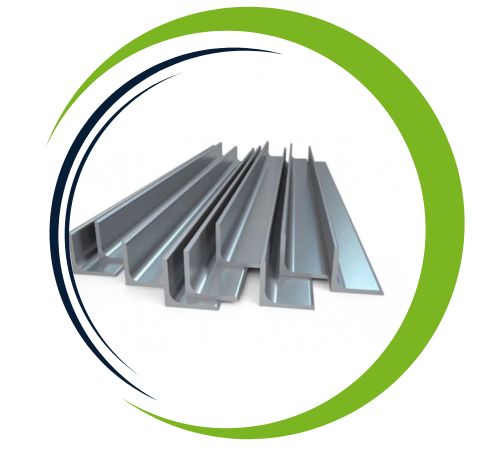

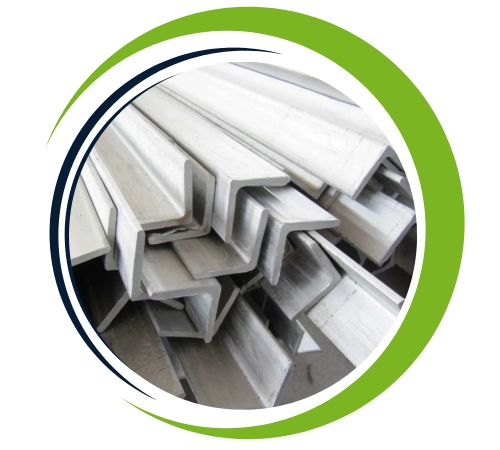

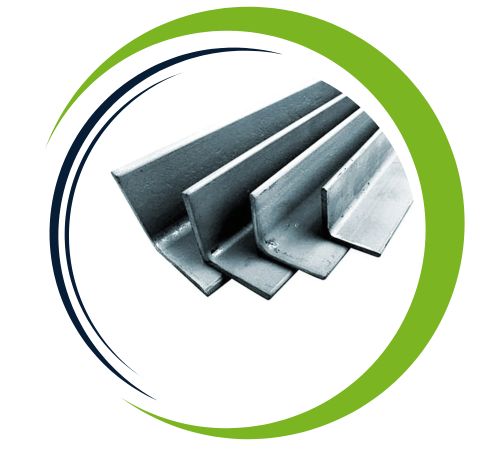

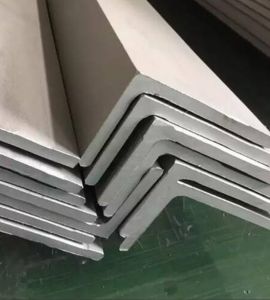

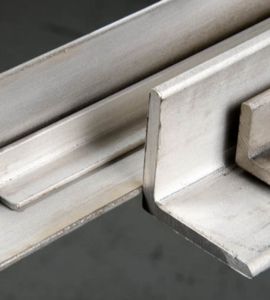

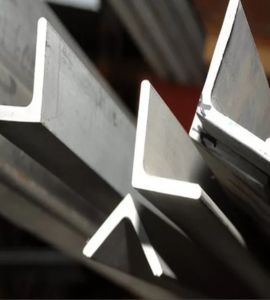

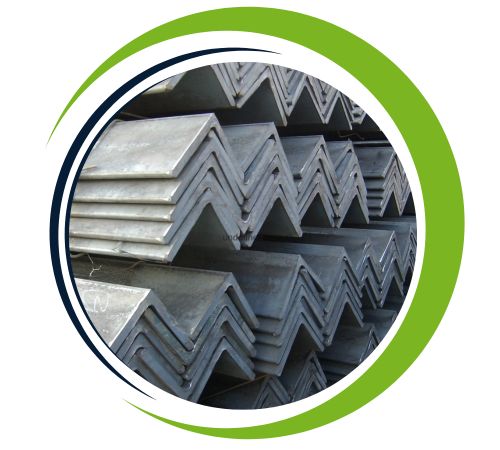

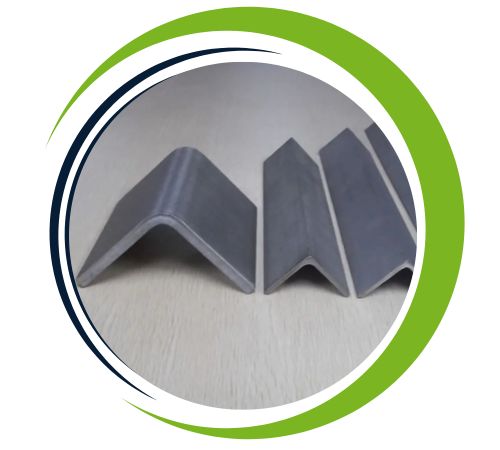

Smith Fittings, located in Canberra, Australia, is a reliable manufacturer and supplier of **Stainless Steel 304L Angles**. These angles are celebrated for their outstanding corrosion resistance, impressive ductility, and long-lasting durability. Crafted from low-carbon austenitic stainless steel, 304L angles are designed for excellent weldability while also resisting oxidation, chemical attacks, and general corrosion across various environments. At Smith Fittings, precision manufacturing meets rigorous quality control, ensuring that their 304L angles comply with international standards. Perfect for industrial, chemical, and architectural uses, these angles promise enduring structural integrity, dependable performance, and versatility, making them ideal for challenging fabrication, structural, and high-performance engineering projects.
**Stainless Steel 304L Angles** are composed of chromium (18–20%) and nickel (8–10.5%), with a low carbon content that helps prevent carbide precipitation and boosts weldability. They boast a tensile strength of around 485 MPa, a yield strength of 170 MPa, and an elongation of 40%. With a density of 8.0 g/cm³ and a melting range of 1400–1450°C, these angles maintain remarkable toughness, formability, and corrosion resistance, ensuring reliable performance in industrial, structural, and mildly corrosive settings.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 304L Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304L | 1.4306/1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Josh Sheets and Plates based in Canberra, Australia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 304L angle offers several advantages, making it a popular choice for structural applications. It provides resistance to corrosion, especially in harsh environments such as the chemical industry, food and marine industries. The low carbon content increases its weldability, reducing the risk of sensing and carbide precipitation. The material provides high strength, durability and oxidation resistance, ensuring long-lasting performance. The stainless steel 304L is versatile, easy to manufacture, and maintains its appearance with minimal maintenance. The resistance to stress corrosion cracking further extends its life under extreme conditions.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
**Stainless Steel 304L Angles** find extensive use in applications that demand corrosion resistance, high ductility, and structural reliability. They are perfect for chemical processing equipment, heat exchangers, architectural frameworks, food and pharmaceutical processing units, and industrial machinery. Moreover, they are utilized in power generation, marine, and offshore structures where weldability, durability, and resistance to oxidizing environments are essential. Their exceptional performance makes them a top choice for fabrication, structural, and high-performance engineering applications across a wide range of industries.
