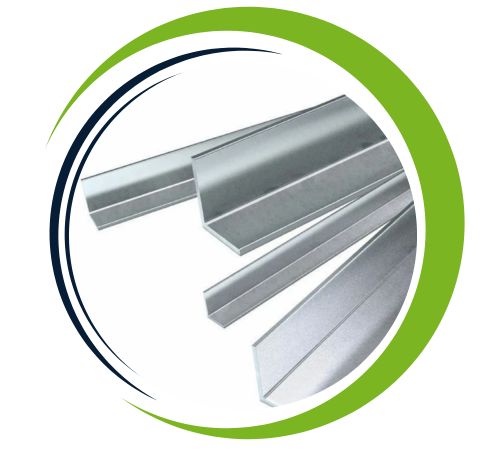

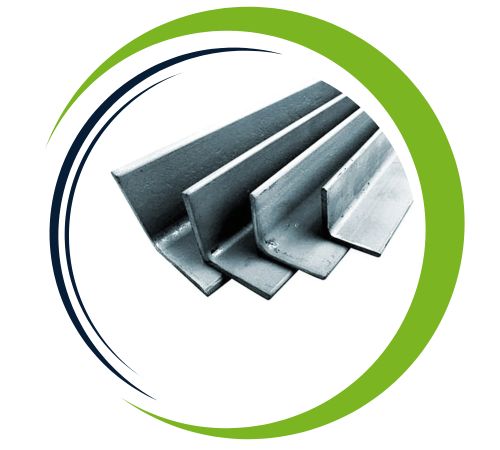

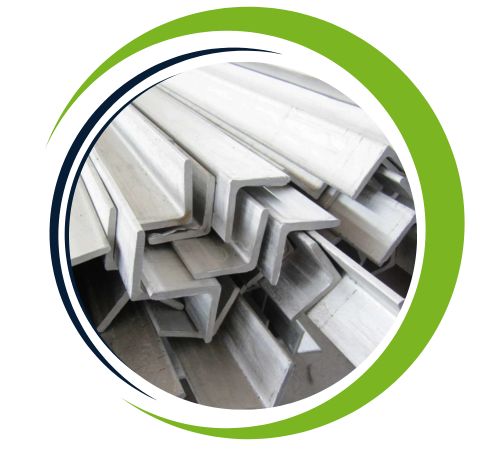

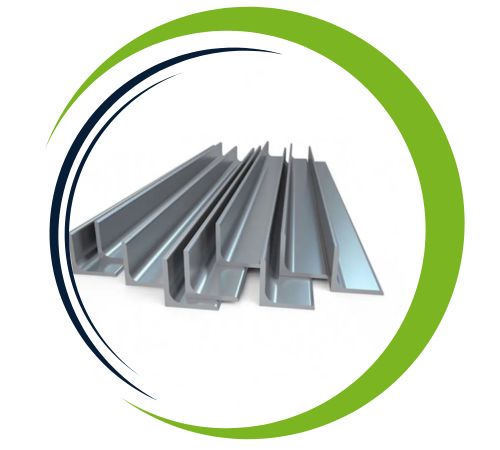

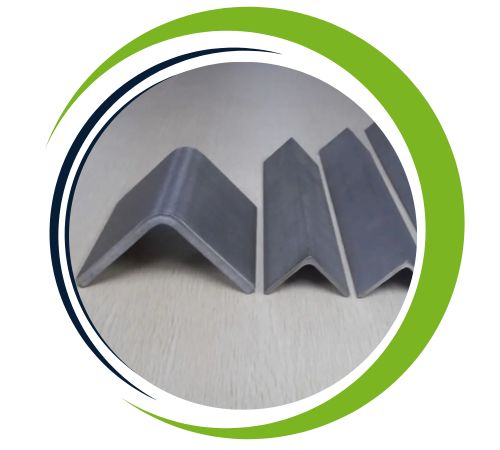

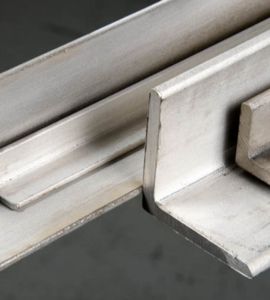

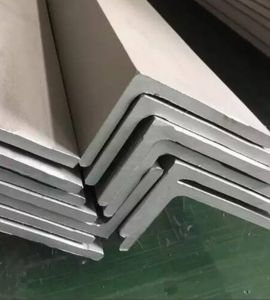

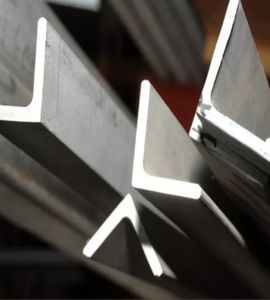

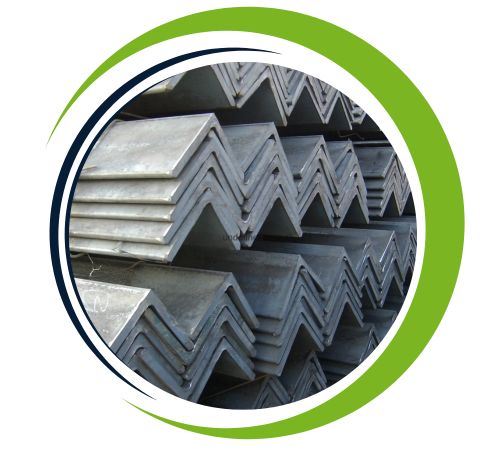

Smith Fittings, located in Canberra, Australia, stands out as a top manufacturer and supplier of **Stainless Steel 310S Angles**. These angles are celebrated for their remarkable high-temperature strength, corrosion resistance, and overall durability. Crafted from a special blend of high-chromium, high-nickel austenitic stainless steel with low carbon content, they offer excellent oxidation resistance and prevent carbide precipitation even in extreme heat. Smith Fittings is committed to precision manufacturing and rigorous quality control, ensuring that their 310S angles meet international standards. Perfect for industrial, chemical, and power generation applications, these angles promise long-lasting structural integrity, reliable performance, and resistance to scaling and corrosion in tough operating conditions.
**Stainless Steel 310S Angles** are composed of chromium (24–26%) and nickel (19–22%), with low carbon content that boosts their high-temperature corrosion resistance and stability. They boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. With a density of 8.0 g/cm³ and a melting range of 1390–1425°C, these angles maintain excellent toughness, weldability, and formability, ensuring reliable mechanical performance in high-temperature and oxidizing environments.
Standard : ASTM / ASME A276 / SA276
Angle Size : 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm etc.
Flat Size : 2mm ~ 100mm etc.
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length
Finish : Hot rolled (HR), Cold rolled (CR), Galvanized etc
| Element | SS 310S |
| C | 0.08 max |
| Mn | 2.0 max |
| Si | 1.00 max |
| P | 0.045 max |
| S | 0.030 max |
| Cr | 24 – 26 |
| Ni | 19 – 21 |
| Mo | 0.75 max |
| Fe | 53.095 min |
| Element | SS 310S |
| Density | 7.9 g/cm3 |
| Melting Point | 1402 °C (2555 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | – | X8CrNi25-21 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Josh Sheets and Plates based in Canberra, Australia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 310S angle offers several advantages, including excellent resistance to high temperature oxidation and corrosion, making it ideal for high temperature environments High strength and durability, time saving long system integrity even under extreme conditions. The alloy is also highly resistant to sulfidation and carburization, which is an advantage in hot, humid environments. The lower carbon content reduces carbide precipitation during welding, resulting in improved weldability. In addition, the stainless steel 310S angle retains excellent mechanical properties at high temperatures, making it suitable for industrial applications such as furnaces, heat exchangers and chemical processors.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
**Stainless Steel 310S Angles** find their place in various applications that demand high-temperature durability and corrosion resistance. They are perfect for furnace components, heat exchangers, boilers, chimneys, and chemical processing equipment. Additionally, they are utilized in power generation, petrochemical, and industrial frameworks where thermal stability, structural strength, and oxidation resistance are essential. Their outstanding performance in extreme heat and corrosive settings makes them ideal for structural, industrial, and high-performance engineering projects.
