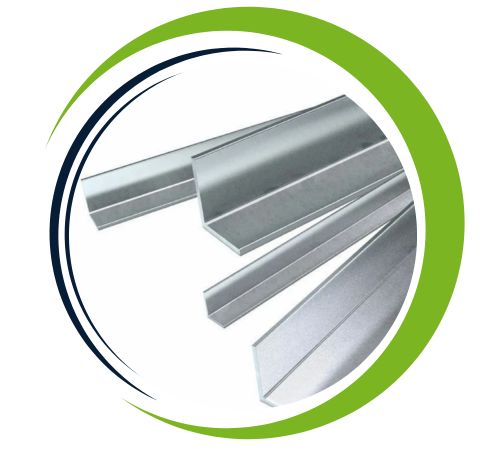

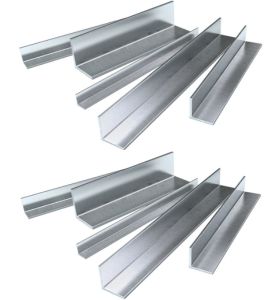

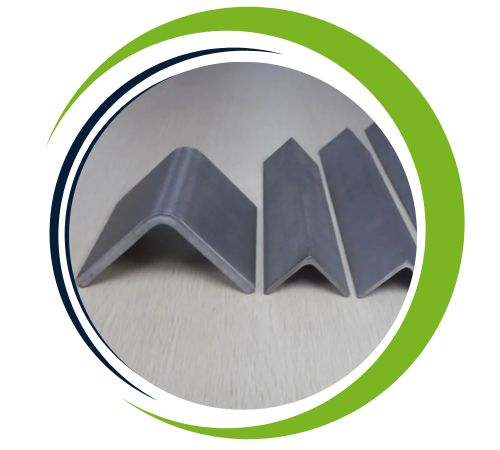

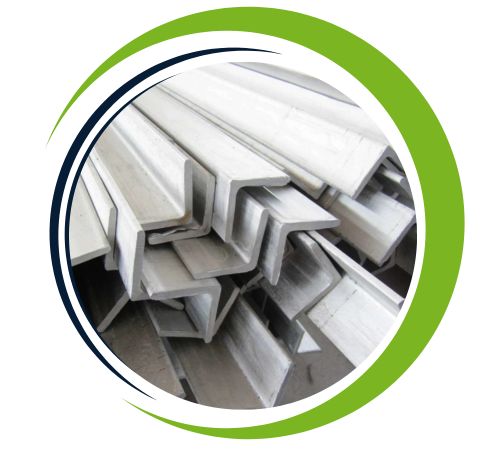

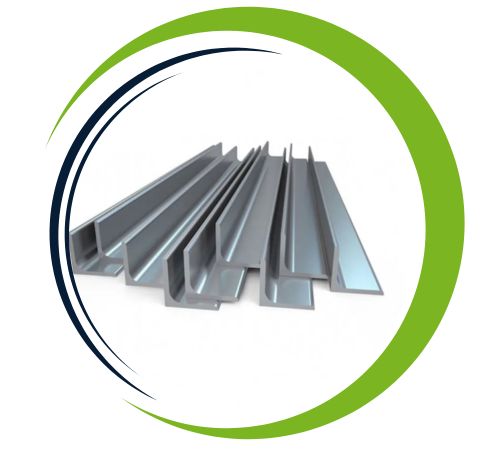

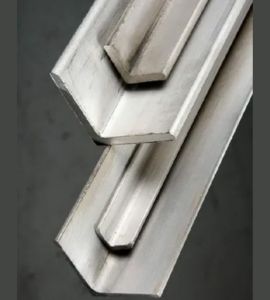

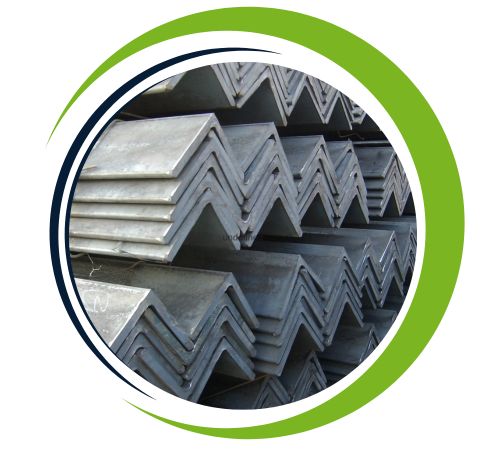

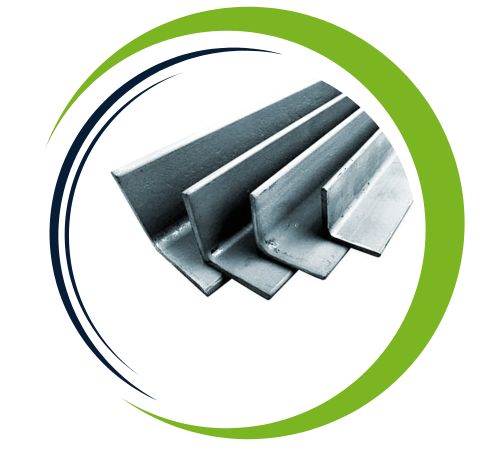

Smith Fittings, a reliable manufacturer and supplier located in Canberra, Australia, proudly offers top-notch **Stainless Steel 446 Angles** that stand out for their remarkable resistance to oxidation and corrosion, even in high-temperature settings. These angles are perfect for industries that demand strength and durability at elevated temperatures, such as power generation, furnace equipment, and chemical processing. Crafted with precision and in line with global standards, Smith Fittings’ Stainless Steel 446 Angles guarantee outstanding mechanical stability, excellent weldability, and long-lasting performance. Their sturdy design makes them ideal for challenging structural and thermal applications across a variety of industrial environments.
**Stainless Steel 446 Angles** are primarily made of iron, containing about 23–27% chromium along with small amounts of manganese, silicon, carbon, and sulfur. This ferritic stainless steel grade is known for its excellent resistance to oxidation, scaling, and sulfidation at high temperatures. It boasts a moderate tensile strength of around 485 MPa and a yield strength of about 275 MPa, along with good thermal conductivity. The alloy maintains its structural integrity under thermal stress, making it a great choice for high-temperature and oxidizing environments.
| Specifications | : | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 446 Angle | : | 5mm to 9mm |
| SS 446 Channel | : | 40mm*20mm~300mm*300mm |
| SS 446 Beam | : | 3″ thru 12.31″ |
| SS 446 Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | N |
| SS 446 | 0.2 max | 1.5 max | 0.75 max | 0.040 max | 0.030 max | 23-30 | – | 0.50 | 0.10-0.25 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| MPa – 485 | MPa – 275 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 446 | 1.4762/1.4763 | S44600 | SUS 446 | – | – | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Josh Sheets and Plates based in Canberra, Australia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 446 angle provides excellent benefits, especially in high-temperature environments. It provides exceptional resistance to oxidation, corrosion and scaling even at temperatures up to 1100 degrees Celsius. The high chromium content increases strength and durability, making it ideal for applications such as heat exchangers, industrial furnaces, heating appliances, etc. It exhibits excellent resistance to sulfur gases and dried water, and maintains durability under harsh conditions. In addition, its robust mechanical properties and weldability make it applicable to a variety of construction and industrial applications, providing reliable performance and long service life.
**Stainless Steel 446 Angles** find extensive use in industries where high-temperature oxidation and corrosion resistance are essential. They are perfect for furnace components, heat exchanger parts, kiln liners, and boiler baffles. In the power generation and petrochemical industries, these angles are utilized in exhaust systems, refinery equipment, and burners. Their exceptional mechanical strength and dimensional stability make them ideal for heavy-duty structural applications. Moreover, Stainless Steel 446 Angles are favored in thermal processing and environmental systems due to their durability and impressive performance at high temperatures.
