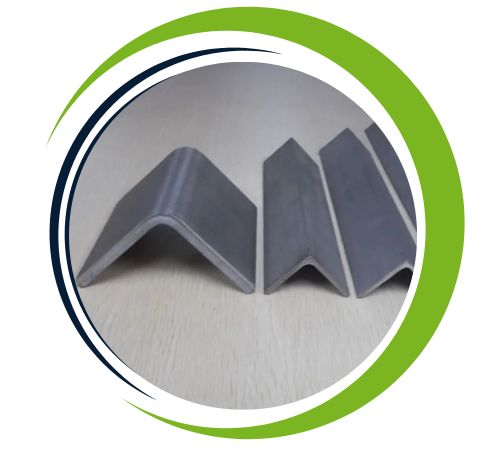

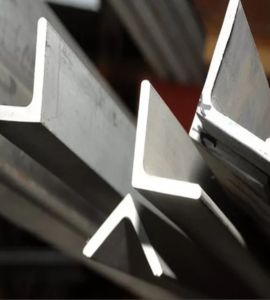

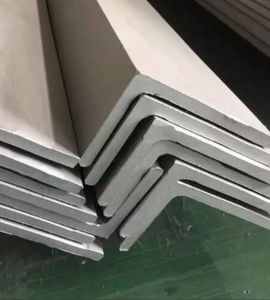

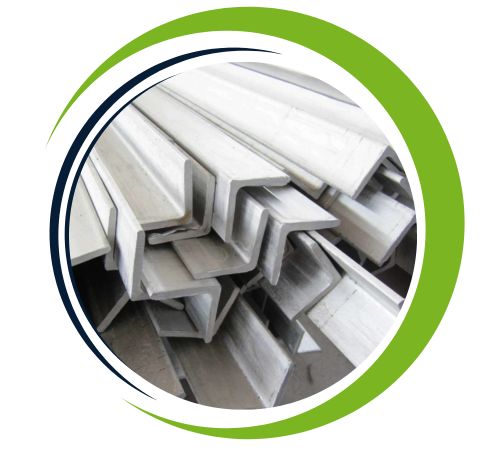

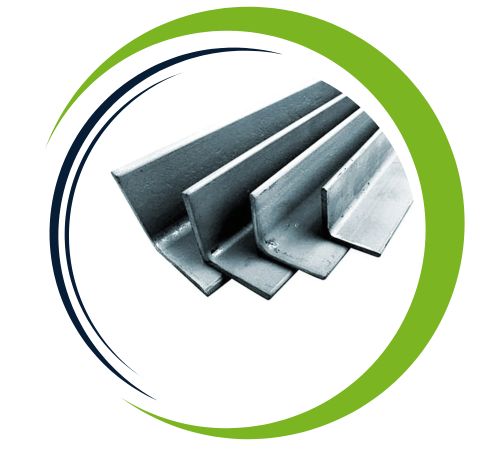

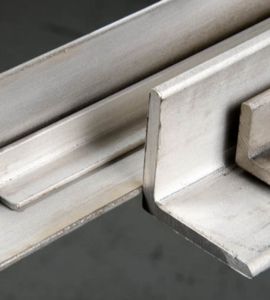

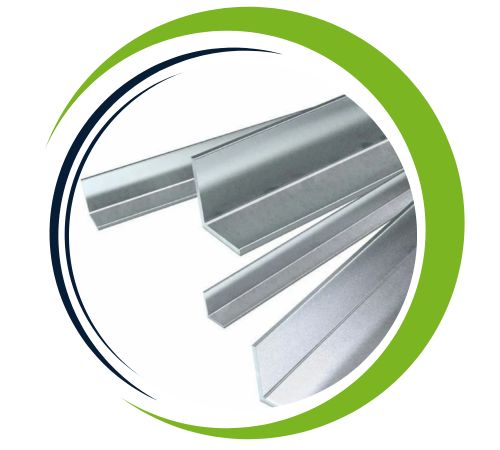

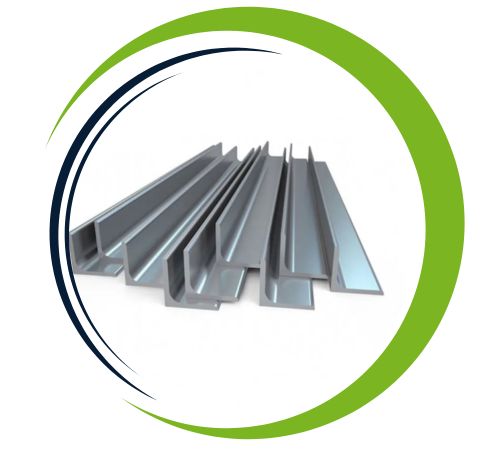

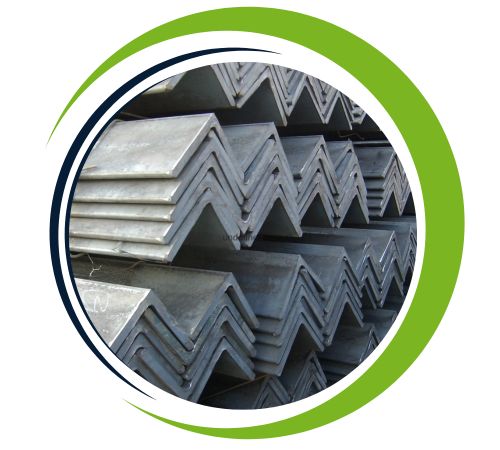

Smith Fittings, located in Canberra, Australia, is a reliable manufacturer and supplier of **Stainless Steel 316 Angles**. These angles are well-known for their outstanding corrosion resistance, strength, and durability. Crafted from molybdenum-bearing austenitic stainless steel, they provide excellent protection against pitting, crevice corrosion, and chemical attacks, particularly in environments rich in chlorides and marine conditions. Smith Fittings is committed to precision manufacturing and rigorous quality control, ensuring that their 316 angles meet international standards for high performance. Perfect for industrial, marine, and structural applications, these angles guarantee long-lasting reliability and structural integrity, making them the go-to choice for challenging projects in tough operational settings.
**Stainless Steel 316 Angles** are composed of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), which enhance their corrosion resistance and mechanical stability. They boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. With a density of 8.0 g/cm³ and a melting range of 1375–1400°C, these angles provide excellent toughness, weldability, and formability, ensuring dependable performance even in high-temperature and aggressive environments.
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Size | 3/4″ THRU 8″ |
| Thickness | 1/8″ thru 5/8″ |
| Type | Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled |
| Grades | 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Josh Sheets and Plates based in Canberra, Australia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 316 angle provides excellent resistance to corrosion, especially in harsh environments such as marine and chemical conditions, and the molybdenum content gives it excellent strength and durability, allowing it to operate even at elevated temperatures in. This alloy provides excellent weldability and formability, making it suitable for complex structural applications. Additionally, the stainless steel 316 surface is low maintenance, resists pitting, cracking and corrosion, and is very resistant to oxidation. These properties make it ideal for use in industries such as pharmaceuticals, food processing and manufacturing.
| THICKNESS | ||||||
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
**Stainless Steel 316 Angles** find extensive use in applications that demand high corrosion resistance and structural strength. They are perfect for chemical processing plants, marine structures, heat exchangers, pressure vessels, and offshore platforms. Additionally, they are utilized in architectural and industrial frameworks, power generation units, and equipment for food or pharmaceutical processing. Their exceptional resistance to acids, chlorides, and oxidizing environments guarantees long-term durability and performance, even in harsh industrial and coastal conditions.
